R432037644 Aventics Kit End Plate

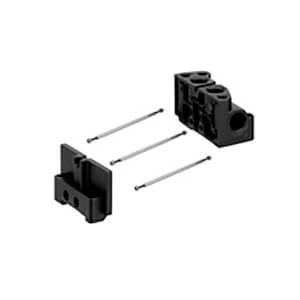

Image may represent a range of products. Product may vary based on listed specifications.

Aventics End Plate Left/Right, Base Plate, Pneumatic Port (1) Both Diections Possible , 3/4 in. NPT Compressed Air Connection Output, Pneumatic Ports (3, 5) Both Diections Possible , Exhaust Type: Ports Separated, ISO 3 Frame Size, ISO 5599-1, -1 to 16 bar Working Pressure, -20 to 70 Deg C Ambient/Medium Temperature Range, Die-Cast Aluminum Base Plate Material, Acrylonitrile Butadiene Rubber Seal Material.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Type: End Plates
Frame Size: ISO 3
Max. Ambient Temperature: 70 °C
Max. Medium Temperature: 70 °C
Min. Ambient Temperature: -20 °C
Min. Medium Temperature: -20 °C
Seal Material: Acrylonitrile Butadiene Rubber
Working Pressure: -1 to 16 bar
