Image may represent a range of products. Product may vary based on listed specifications.
Aventics

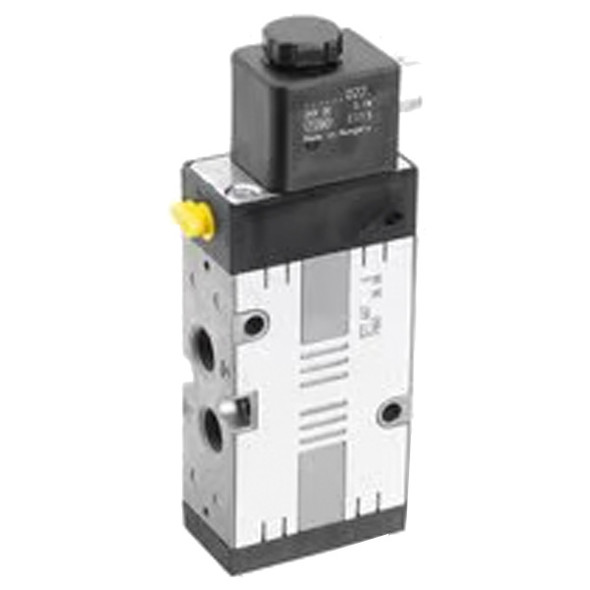

Aventics Series CD07 5/2-Directional Valve, Electrically Operated, Single Solenoid, Spool Valve, Positive Overlapping, 5/2, with Spring Return, Soft Seal, Manual Override with Detent, 1/4 in. NPT Internal Thread Compressed Air Connection Output, 1200 l/min Nominal Flow, 3 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form A, IP65, Internal Pilot, 230 VAC Operating Voltage, Protected against Polarity Reversal, 30 mm Coil Width, Compatibility Index 52, 100% Duty Cycle, 25 ms Switch-on Time, 45 ms Switch-off Time, Housing Material of Polyamide, Fiber-Glass Reinforced, Die Cast Zinc.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series CD07
- Product Type: Directional Valves
- Electrical Connection Size: "EN 175301-803, Form A"
- Electrical Connection Type: Plug
- Housing Material: Fiber-Glass Reinforced Polyamide
- IP Rating: IP65
- Manual Override: With Detent
- Nominal Flow Qn: 1200 l/min
- Operational Voltage: 230 VAC
- Pilot: Internal
- Typ. Switch-Off Time: 45 ms
- Typ. Switch-On Time: 25 ms
- Working Pressure: 3 to 10 bar
