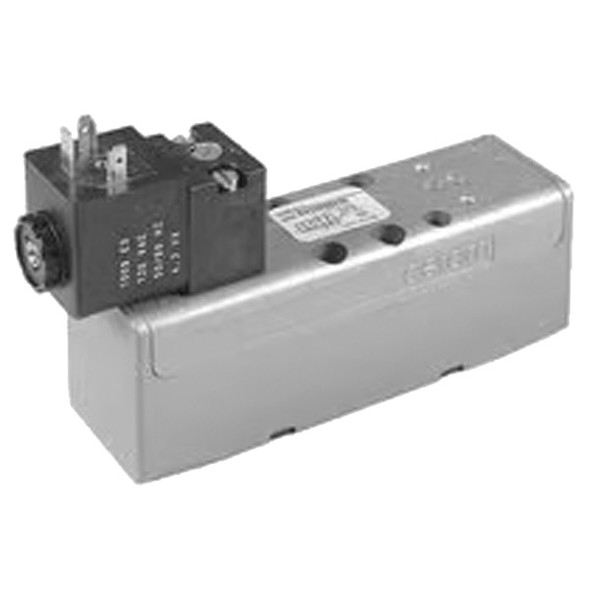

R432002478 Aventics Series CERAM 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CERAM 5/2-Directional Valve, Electrical Activation, ISO 1 Frame Size, Basic Valve without Coil, 5/2, with Air Spring Return, Double Solenoid, Ceramic Sealing, Manual Override with/without Detent, 1100 l/min Nominal Flow, 0 to 10.3 bar Working Pressure, Internal Pilot, IP65, ISO 5599-1 Standard, -15 to 66 Deg C Ambient Temperature Range, Die-Cast Zinc Housing, 30 mm CNOMO Pilot Valve Width.

  • Manufacturer: Aventics
  • Brand/Division: Numatics
  • Product Category: Valves
  • Product Family: Series CERAM
  • Product Type: Directional Valves
  • Frame Size: ISO 1
  • IP Rating: IP65
  • Manual Override: With Detent, Without Detent
  • Max. Ambient Temperature: 66 °C
  • Min. Ambient Temperature: -15 °C
  • Nominal Flow Qn: 1100 l/min
  • Pilot: Internal
  • Working Pressure: 0 to 10.3 bar

R432002478
