Image may represent a range of products. Product may vary based on listed specifications.
Aventics

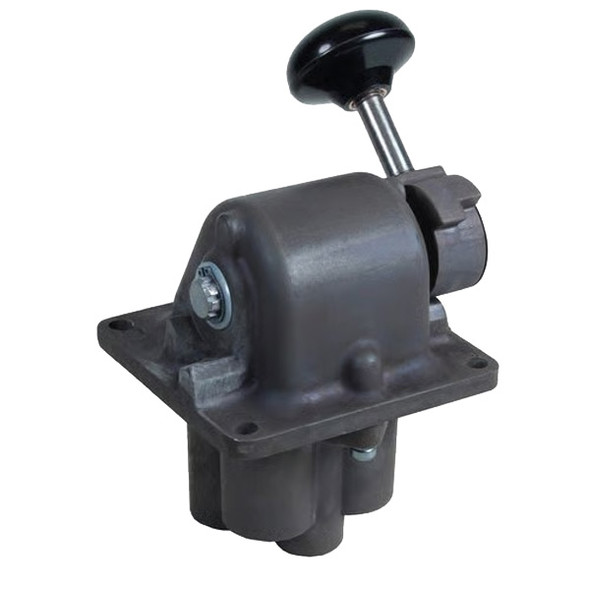

Aventics Series A-Pilotair 3/2-Directional Valve, Manual Activation, 2-HA-2, 2-HA-2L, 2-HA-2Z, Poppet Valve, Soft Seal, with Detent, 1/4 in. Diameter Compressed Air Connection Input/Output, 1308.72 l/min Nominal Flow, 0 to 13.7 bar Working Pressure, 0 to 17.3 bar Control Pressure, -40 to 71 Deg C Ambient/Medium Temperature Range, 0 to 1 mg/m^3 Oil Content of Compressed Air, 50 Micron Max. Particle Size, Die-Cast Aluminum Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series A-Pilotair
- Product Type: 3/2-Directional Valves
- Control Pressure: 0 to 17.3 bar
- Housing Material: Aluminum
- Max. Ambient Temperature: 71 °C
- Max. Medium Temperature: 71 °C
- Micron Rating: 50 µm
- Min. Ambient Temperature: -40 °C
- Min. Medium Temperature: -40 °C
- Nominal Flow Qn: 1308.72 l/min
- Working Pressure: 0 to 13.7 bar
