R422103581 Aventics Series LS04-AF 2x3/2-Directional Valve

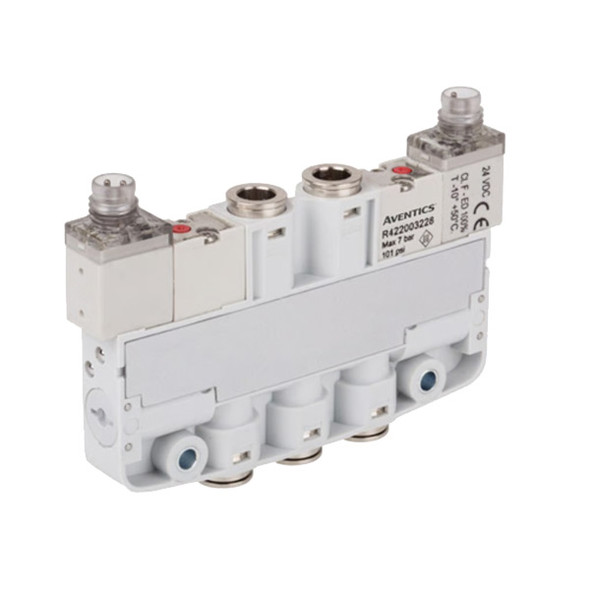

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series LS04-AF 2x3/2-Directional Valve, Electrical Activation, 2x 3/2 NC/NC, with Spring Return, Soft Seal, Manual Override without Detent, 4 Diameter Compressed Air Connection Output, 180 l/min Nominal Flow, 3.5 to 7 bar Working Pressure, M8 Plug Electrical Connection (DIN EN 60947-5-2), IP65, Internal Pilot, 24 VDC Operating Voltage, -10% / +10% Voltage Tolerance, 0.8W Power Consumption, 100% Duty Cycle, -10 to 50 Deg C Ambient Temperature Range, Yellow LED Status Display, 12 ms Switch-on Time, 15 ms Switch-off Time, Polyoxymethylene Housing Material.

  • Manufacturer: Aventics
  • Product Family: Series LS04
  • Brand/Division: Numatics
  • Product Category: Valves
  • Product Type: Directional Valves
  • Housing Material: Polyoxymethylene
  • IP Rating: IP65
  • Manual Override: Without Detent
  • Max. Ambient Temperature: 50 °C
  • Min. Ambient Temperature: -10 °C
  • Nominal Flow Qn: 180 l/min
  • Operational Voltage: 24 VDC
  • Pilot: Internal
  • Typ. Switch-Off Time: 15 ms
  • Typ. Switch-On Time: 12 ms
  • Working Pressure: 3.5 to 7 bar

R422103581
