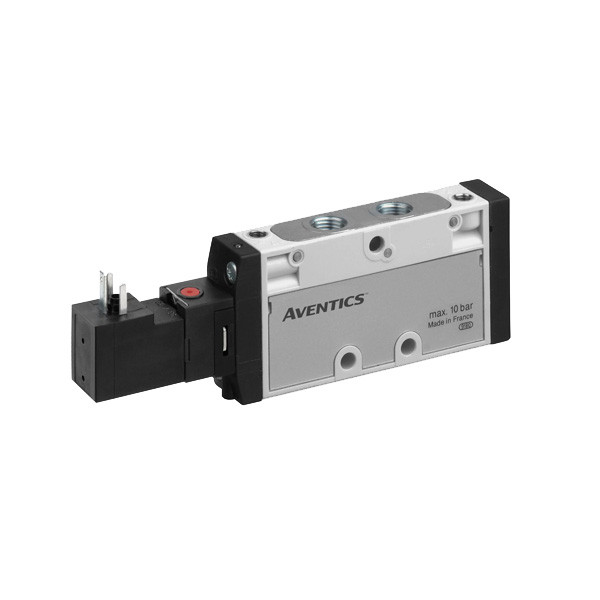

R422101203 Aventics Series TC08 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series TC08 5/2-Directional Valve, Electrical Activation, Spool Valve, Negative Overlapping, 5/2, with Air Spring Return, Soft Seal, Manual Override without Detent, Manual Override w/ Detent, 1/8-27 NPTF Compressed Air Connection Output, 800 l/min Nominal Flow, 2.5 to 10 bar Working Pressure, Plug Electrical Connection (ISO 15217, Form C), IP65, Internal Pilot, 230 VAC Operating Voltage, 15 mm Pilot Valve Width, -10 to 50 Deg C Ambient Temperature Range, 100% Duty Cycle, 14 ms Switch-on Time, 17 ms Switch-off Time, Polyamide, Fiber-glass Reinforced Housing Material.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series TC08
Product Type: 5/2-Directional Valves
