Aventics

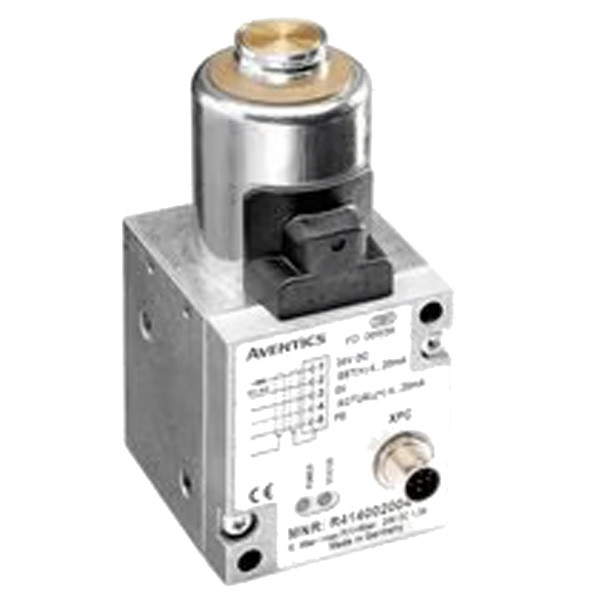

Aventics Series ED05 E/P Pressure Regulator, Directly Controlled, Analog Control, Air Exhaust, 24 VDC Operating Voltage, 4-20 mA Actual Output Value, 4-20 mA Nominal Input Value, 0 to 6 bar Regulation Range, 0 to 11 bar Working Pressure Range, Hysteresis < 0.06 bar, 1000 l/min Nominal Flow, 0 to 70 Deg C Ambient Temperature Range, IP65, Poppet Valve, CE Declaration of Conformity, G 1/4 Compressed Air Connection Input/Output/Exhaust, M12 Signal/Electrical Connection.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series ED05
- Product Type: E/P Pressure Regulators
- IP Rating: IP65
- Max. Ambient Temperature: 70 °C
- Min. Ambient Temperature: 0 °C
- Nominal Flow Qn: 1000 l/min
- Operational Voltage: 24 VDC
- Working Pressure: 0 to 11 bar
- Accessories for: Valves
