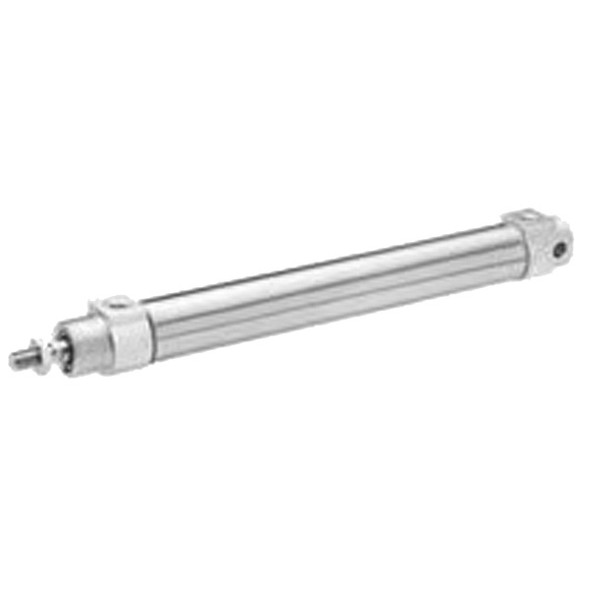

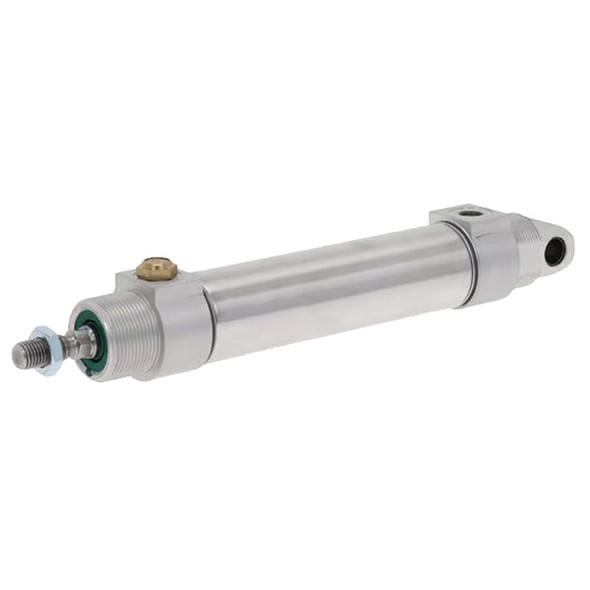

R412020645 Aventics Series RPC Round Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series RPC Round Cylinder, Short Type, 32 mm Piston Diameter, 160 mm Stroke, G 1/8 Ports, Double-Acting, Elastic Cushioning, Piston with Magnet, M10x1.25 External Thread Piston Rod, Single Piston Rod, Standard Industry Scraper, 6.3 bar Pressure for Determining Piston Forces, 435 N Rectracting Piston Force, 505 N Extracting Piston Force, -20 to 80 Deg C Ambient Temperature Range, 1 to 10 bar Working Pressure, 0.8 J Impact Energy, 0.3 kg Weight 0 mm Stroke, 0.015 kg Weight + 10 mm Stroke, 1200 mm Stroke Max, -20 Deg C Min. Medium Temperature.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series RPC
Product Type: Round Cylinders
Max. Ambient Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Stroke: 160 mm
Working Pressure: 1 to 10 bar
Accessories for: Actuators
