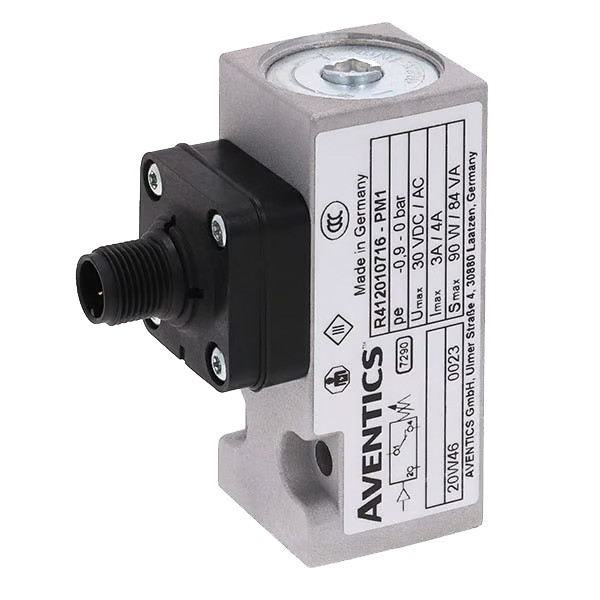

R412010717 Aventics Series PM1 Pressure Switches

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series PM1 Pressure Switches, Mechanical, Diaphragm, Spring Loaded, Adjustable, Any Mounting Orientation, 0.2 to 16 bar Operating Pressure Range, 80 bar Protection against Overpressure, Operational Voltage 12-125 VDC & 12-30 VAC, Max Shock Resistance 15 g IEC 60068 - 2-64, Vibration Resistance 10 g (60-500 Hz) IEC 60068 - 2-6, Precision +/-2% (% of full scale value), Hysteresis: Max Switching Pressure Difference, Measurement: Relative Pressure, G 1/4 Internal Thread Compressed Air Connection, M12x1 Plug Electrical Connection, -20 to 80 Deg C Ambient Temperature Range, Microswitch (input/output), 100/min. Max Switching Frequency, Adjustable Switching Point, IP65.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series PM1
Product Type: Pressure Switches
IP Rating: IP65
Max. Ambient Temperature: 80 °C
Min. Ambient Temperature: -20 °C
Operational Voltage: 12 to 125 VDC
Operational Voltage: 10 to 30 VAC
