Image may represent a range of products. Product may vary based on listed specifications.
Aventics

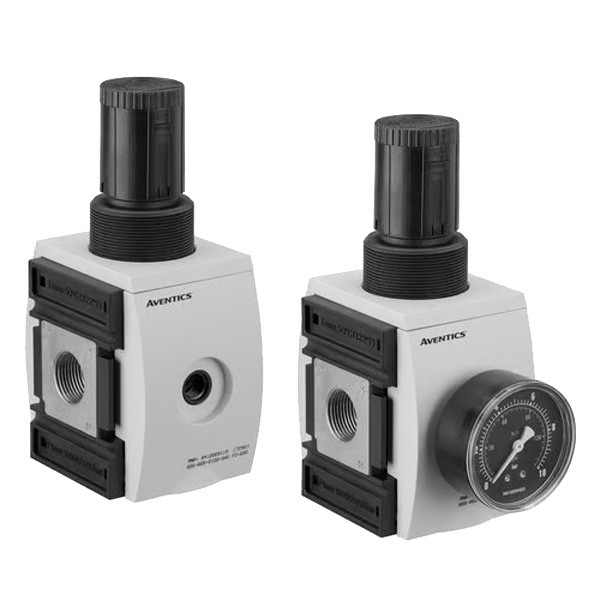

Aventics Series AS5-RGS Pressure Regulator, without Pressure Gauge, G 3/4 Port, Single Pressure Supply, Diaphragm-Type Pressure Regulator, 14500 l/min Nominal Flow, Mechanical Activation, 0.5 to 16 bar Regulation Range, 0.5 to 16 bar Working Pressure, -10 to 50 Deg C Ambient/Medium Temperature, 1.5 l/min Max. Internal Air Consumption, with Relieving Air Exhaust, Any Mounting Orientation, Can be Assembled into Blocks, for Padlocks, Polyamide Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series AS5
- Product Type: Pressure Regulators
- Housing Material: Polyamide
- Max. Ambient Temperature: 50 °C
- Max. Medium Temperature: 50 °C
- Min. Ambient Temperature: -10 °C
- Min. Medium Temperature: -10 °C
- Nominal Flow Qn: 14500 l/min
- Working Pressure: 0.5 to 16 bar
- Accessories for: Valves
