Image may represent a range of products. Product may vary based on listed specifications.
Aventics

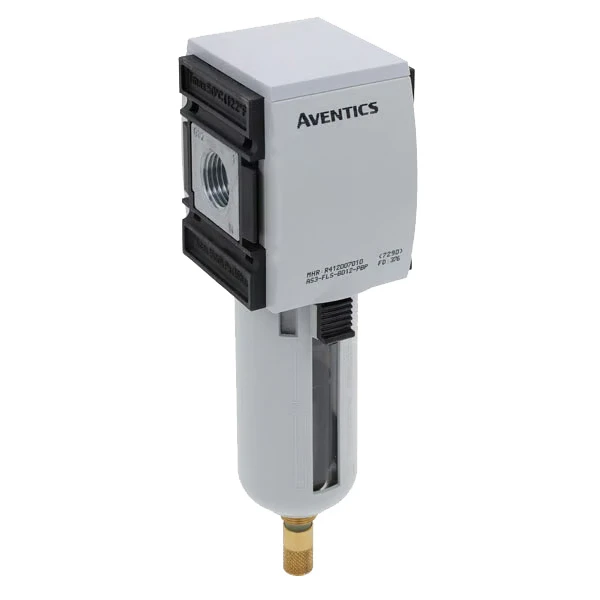

Aventics Series AS3-FLS Filter, Polycarbonate Reservoir, with PA Protective Guard, G 1/2 Port, 5 Micron, 3500 l/min Nominal Flow, Fully-Automatic Condensate Drain, Open without Pressure, 1.5 to 16 bar Working Pressure, -10 to 50 Deg C Ambient Temperature, 49 cm^3 Filter Reservoir Volume, Exchangeable Filter Element, Vertical Mounting, Can be Assembled into Blocks, Polyamide Housing Material, Acrylonitrile Butadiene Styrene Front Plate, Acrylonitrile Butadiene Rubber Seal Material, Die-cast Zinc Threaded Bushing, Polycarbonate Reservoir, Polyamide Protective Guard, Polyethylene Filter Insert.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series AS3
- Product Type: Filters
- Housing Material: Polyamide
- Max. Ambient Temperature: 50 °C
- Micron Rating: 5 µm
- Min. Ambient Temperature: -10 °C
- Nominal Flow Qn: 3500 l/min
- Seal Material: Acrylonitrile Butadiene Rubber
- Working Pressure: 1.5 to 16 bar
