Aventics

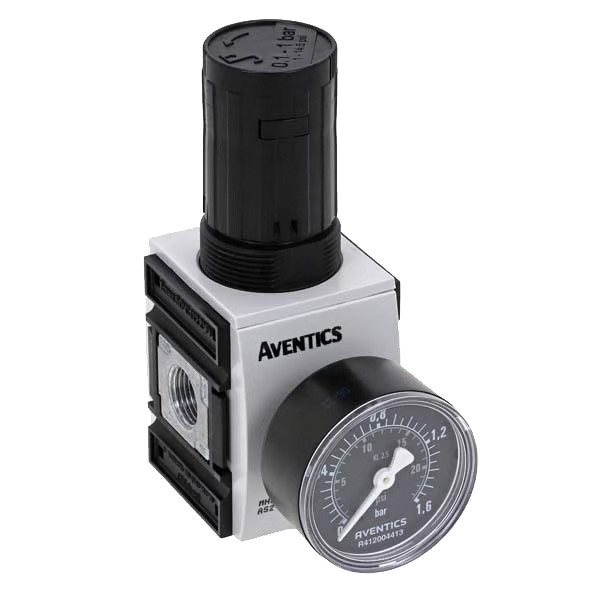

Aventics Series AS2-RGS Pressure Regulator, with Pressure Gauge, G 3/8 Port, Single Pressure Supply, Diaphragm-Type Pressure Regulator, 2700 l/min Nominal Flow, Mechanical Activation, 0.5 to 10 bar Regulation Range, 0.5 to 16 bar Working Pressure, -10 to 50 Deg C Ambient Temperature, with Relieving Air Exhaust, Any Mounting Orientation, Can be Assembled into Blocks, for Padlocks, Polyamide Housing Material, Acrylonitrile Butadiene Styrene Front Plate, Acrylonitrile Butadiene Rubber Seal Material, Die-cast Zinc Threaded Bushing.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Parts & Accessories
- Product Family: Series AS2
- Product Type: Pressure Regulators
- Housing Material: Polyamide
- Max. Ambient Temperature: 50 °C
- Min. Ambient Temperature: -10 °C
- Nominal Flow Qn: 2700 l/min
- Seal Material: Acrylonitrile Butadiene Rubber
- Working Pressure: 0.5 to 16 bar
- Accessories for: Valves
