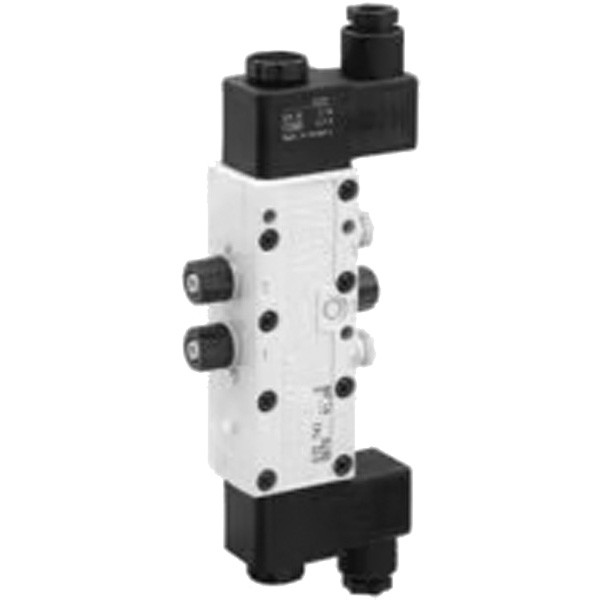

PW-067715-00005 Aventics Series 740 5/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 740 5/2-Directional Valve, Electrical Activation, Diaphragm Poppet Valve, 5/2, Double Solenoid, Soft Seal, Manual Override with Detent, Internal Thread, Plug-in with Tube Nut, 3/8 in. Compressed Air Connection Output, 700 l/min Nominal Flow, 1.5 to 10 bar Working Pressure, Connector, 175301-803, Form A, IP65, Internal Pilot, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, Protected against Polarity Reversal, 2.7W Power Consumption, Compatibility Index 52, 100% Duty Cycle, 40 ms Switch-on Time, without Valve Plug Connector, Polyoxymethylene.

  • Manufacturer: Aventics
  • Brand/Division: Numatics
  • Product Category: Valves
  • Product Family: Series 740
  • Product Type: Directional Valves
  • IP Rating: IP65
  • Manual Override: With Detent
  • Nominal Flow Qn: 700 l/min
  • Operational Voltage: 24 VDC
  • Pilot: Internal
  • Typ. Switch-On Time: 40 ms
  • Working Pressure: 1.5 to 10 bar

PW-067715-00005
