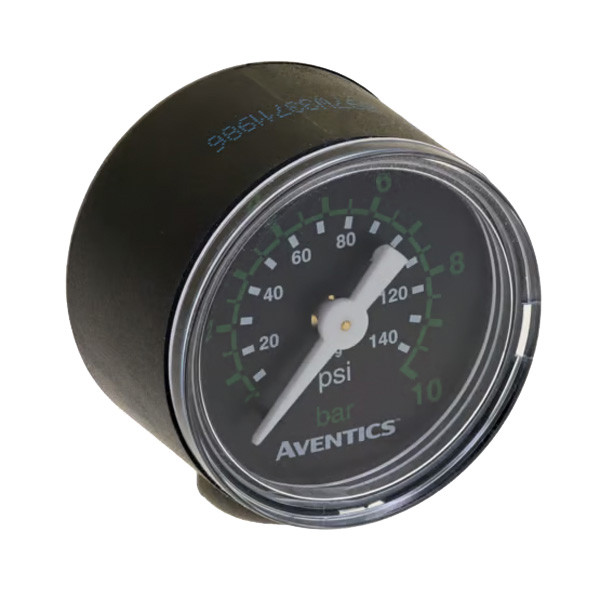

PG1-ROB-G014-SNL-D40P Aventics Series PG1-SNL Pressure Gauge

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series PG1-SNL Pressure Gauge, Bourdon Tube, Back Port, EN 837-1 Standardization, Suitable for ATEX, Class 1.6, G 1/4 Compressed Air Connection, 40 mm Nominal Diameter, 0.5 Scale Value, 0 to 8 bar Max Range of Application, 0 to 10 bar Display Range, -20 to 60 Deg C Ambient Temperature Range, Black Background, Main Scale Unit (outside) is bar unit (Black Background, Green Scale Color), Secondary Scale Unit (inside) is psi White Scale Color), White Pointer, Acrylonitrile Butadiene Styrene Housing Material, Polystyrene Viewing Window, 1827231060.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series PG1
Product Type: Pressure Gauges
Housing Material: Acrylonitrile Butadiene Styrene
Max. Ambient Temperature: 60 °C
Min. Ambient Temperature: -20 °C
