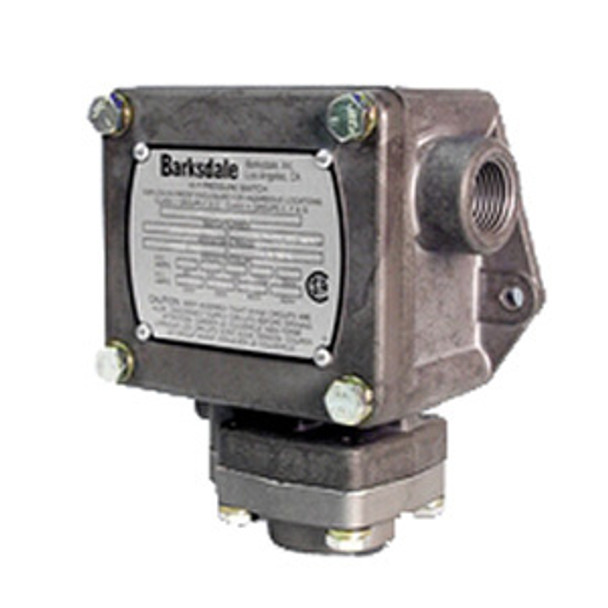

P1X-B340SS-P2 Barksdale Explosionproof Pressure Switch

Image may represent a range of products. Product may vary based on listed specifications.

Barksdale P1X Series Explosionproof Pressure Switch, 1/4"-14 TPI FPT, 125/250/480/600 VAC/125/250 VDC, 10/2/0.05/0.03 A, 6 to 340 PSI, SPDT, NEMA 7/9, Buna-N Diaphragm and Dial Seal Piston, Explosionproof Pressure Switch.

Manufacturer: Barksdale
DOCS_Barksdale Adjustment Instructions: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/barksdale-adjustment-intructions-differential-pressure-vacuum-switch.pdf
LINKS_Browse All Barksdale Products: /manufacturers/barksdale
LINKS_Browse All P1X Series Products: /manufacturers/barksdale/p1x-series
Application: Hydraulic Power Unit
Application: Pneumatic Device
Application: Power Plant
Application: Water Pump
Approval: CSA
Approval: UL
Connection Type: 1/4 Inch-14 TPI Female Threaded
Contact Configuration: SPDT
Contact Rating: 10 A @ 125/250/480 VAC, 2 A @ 600 VAC, 0.05 A @ 125 VDC, 0.03 A @ 250 VDC
Enclosure Material: Anodized Aluminum
Operating Pressure Rating: 6 to 340 psi
Operator Type: Buna-N Diaphragm and Dial Seal Piston
Pressure Media: Water
Product Family: P1X Series
Product Type: Pressure Switches
Enclosure (NEMA Rating): NEMA 7/9
Product Category: Switches
CUSTOM_Product Type2: Dia-Seal Piston Pressure Switches
CUSTOM_Product Type2: Explosionproof Pressure Switches
