Aventics

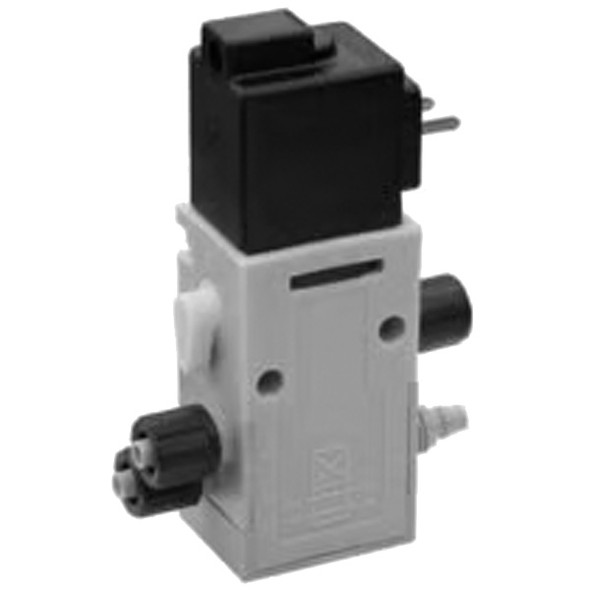

Aventics Series 840 4/2-Directional Valve, Electrical Activation, Diaphragm Poppet Valve, 4/2, Double Solenoid, Soft Seal, Manual Override with Detent, 1/4 in. NPTF Compressed Air Connection Output, 200 l/min Nominal Flow, Plug Connection, EN 175301-803, Form C, IP65, Internal Pilot, 1.8 to 10 bar Working Pressure, 110 VAC Operational Voltage, Protected against Polarity Reversal, 100% Duty Cycle, 20 mm Coil Width, 22.5 mm Pilot Valve Width, -15 to 50 Deg C Ambient Temperature, 12 ms Switch-on Time, 12 ms Switch-off Time, R432008664.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series 840
- Product Type: Directional Valves
- Electrical Connection Size: "EN 175301-803, Form C"
- Electrical Connection Type: Plug
- IP Rating: IP65
- Manual Override: With Detent
- Max. Ambient Temperature: 50 °C
- Min. Ambient Temperature: -15 °C
- Nominal Flow Qn: 200 l/min
- Operational Voltage: 110 VAC
- Pilot: Internal
- Typ. Switch-Off Time: 12 ms
- Typ. Switch-On Time: 12 ms
- Working Pressure: 1.8 to 10 bar
