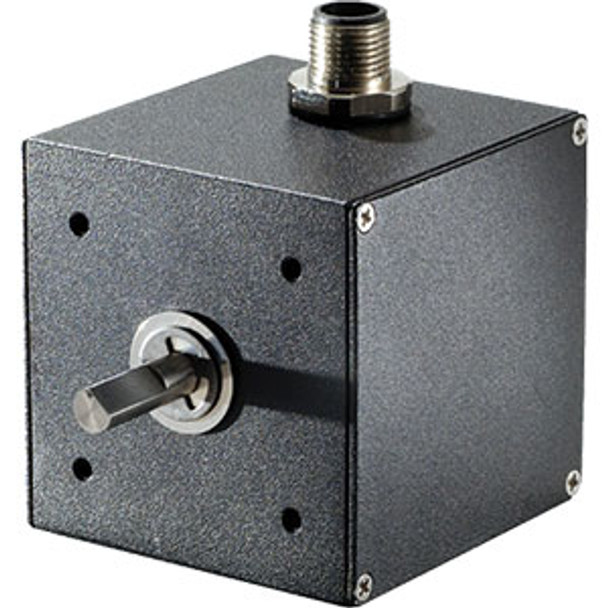

Model 715 Encoder Products Incremental Shaft Encoder

Image may represent a range of products. Product may vary based on listed specifications.

The Model 715 Accu-Coder is ideally suited for applications requiring bi-directional feedback with a constant pulse width. The Model 715 is available in two versions. The Model 715-1 provides output pulses for clockwise shaft rotation on one channel and pulses for counterclockwise rotation on another. The Model 715-2 provides output pulses for counting on one channel while the other channel indicates direction of rotation. Critical performance specifications for the most popular resolutions and advanced Opto-ASIC circuitry - a single chip design that eliminates many board level components - increases the reliability of an already dependable and durable encoder. With new options continually being added, the Model 715 excels in a wide variety of industrial applications.

FEATURES:
  • The original industry-standard cube
  • Five versatile housing styles
  • Bi-directional, constant pulse width
  • Resolutions available up to 10,000 CPR

  • Manufacturer: Encoder Products
  • Product Type: Incremental Shaft Encoders
  • DOCS_Encoder Products Incremental Shaft Encoder Model 715 Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/encoder-products-incremental-shaft-encoder-model-715-datasheet-2018.pdf
  • DOCS_Encoder Products Cube Solutions Brochure: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/encoder-products-cube-solutions-brochure.pdf
  • CUSTOM_Product Series: TRUE
  • Product Category: Encoder
