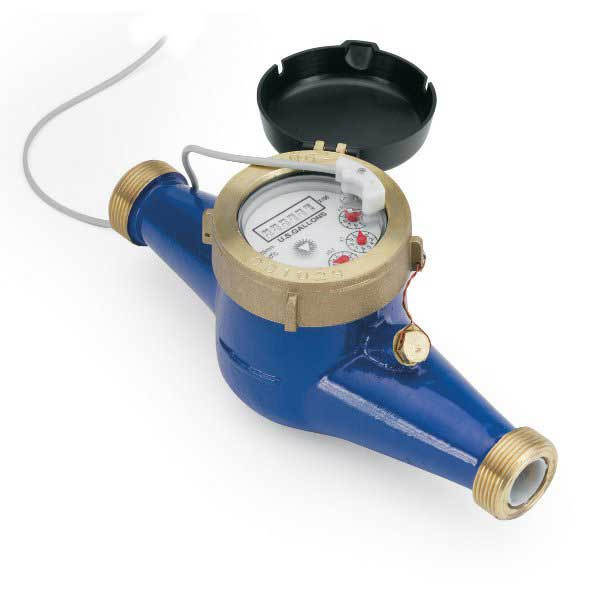

MJR-100-1G-07 Seametrics Cold Water Pulse Meter

Image may represent a range of products. Product may vary based on listed specifications.

Seametrics MJ-Series Cold Water Pulse Meter, 1.0 FPT, dry contact, two-wire reed switch sensor, cast bronze body, 150 psig @105 deg F, 0.44-52 gpm, 1 gal/pulse, 24VDC 20 mA output. Seametric control connector (-07) option.

  • Manufacturer: Seametrics
  • Body Material: Cast Bronze Body
  • Flow Range: 0.44 - 52 gpm
  • Max. Pressure: 150 PSIG
  • Max. Temperature: 105°F
  • Max. Voltage Current: 24VDC 20 mA output
  • Power Type: 6 mA at 12 VDC
  • Product Type: Pulse Meters
  • Pulse Rate: 1 gal/pulse
  • Sensor Type: Two-wire reed switch sensor
  • Size: 1 in.
  • Product Family: MJ / MJH Series
  • Product Category: Flow Meters

MJR-100-1G-07
