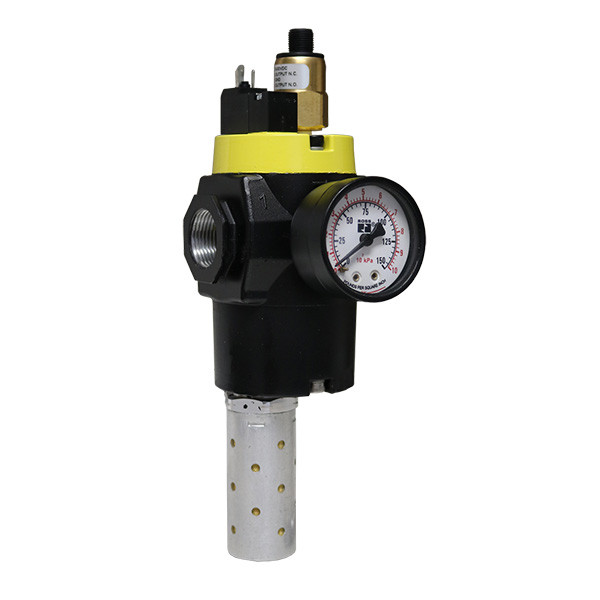

MDC2E141NAEXCGA Ross Controls MDC2 Series Single Solenoid Valve

Image may represent a range of products. Product may vary based on listed specifications.

Ross Controls MDC2 Series Single Solenoid Valve, 3/2, Soft Start Included, External Monitoring, Pressure Switch (PNP), 24 VDC, 1/2 in. NPT Inlet Pipe Size x 1/2 in. NPT Outlet Pipe Size, 1 in Exhaust Size, 1/2 in. Basic Size, Threaded Femal Port Exhaust, Poppet Construction, DIN EN 175301-803 Form C Solenoid Connection, M12 Feedback Connection, 30 to 150 psig Operating Pressure, Analog Gauge, Inline/Modular Mounting, 40 to 175 Deg. F Media Temperature, Aluminum Valve Body, Acetal & Stainless Steel Poppet/Spool Material, Buna-N Seal, CSA/UL, EAC, CE, DGUV, SIL3, PL e, Category 4.

Manufacturer: Ross Controls
LINKS_Browse All Ross Controls Products: /manufacturers/ross-controls
Product Category: Valves
Product Family: MDC2 Series
Product Type: Solenoid Valves
Seal Material: Buna-N
Valve Body Material: Aluminum
Voltage: 24 VDC
