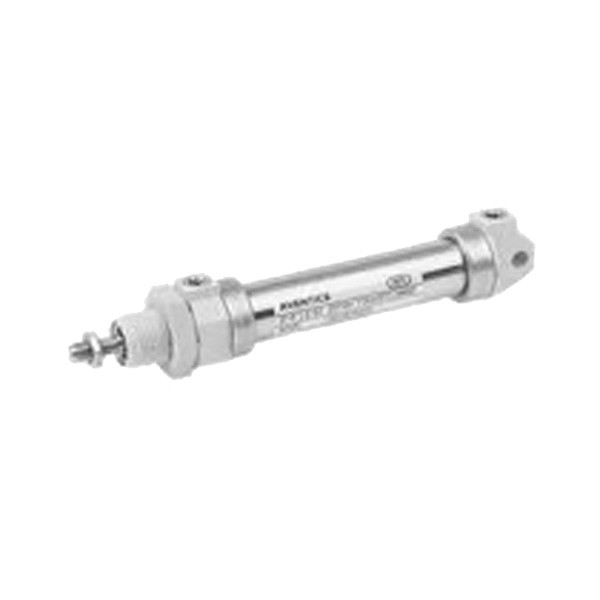

ICM-DA-020-0080-M Aventics Series ICM Mini Cylinder

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series ICM Mini Cylinder, ISO 6432, Double-Acting, 20 mm Piston Diameter, 80 mm Stroke, G 1/8 Ports, Elastic Cushioning, Piston with Magnet, M8 External Thread Piston Rod, Single Piston Rod, 6.3 bar Pressure for Determining Piston Forces, 166 N Retracting Piston Force, 198 N Extracting Piston Force, -20 to 70 Deg C Ambient Temperature, 1 to 10 bar Working Pressure, 0.08 kg Weight 0 mm Stroke, 0.01 kg Weight +10 mm Stroke, 400 mm Stroke Max, -20 Deg C Min. Medium Temperature, 1332008000.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Actuators
Product Family: Series ICM
Product Type: Mini Cylinders
