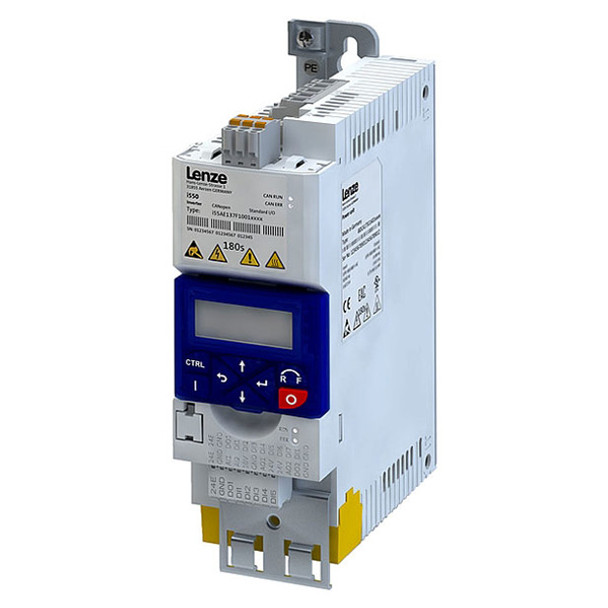

I55AE255C10001000S Lenze Modular Frequency Inverter

Image may represent a range of products. Product may vary based on listed specifications.

Lenze AC Tech I550 Series Modular Frequency Inverter, 170 to 264 VAC 45 to 65 Hz 3-Phase Input, 230/240 VAC 60 Hz 3-Phase Output, 23 A, 5.5 kW, IP20, Standard I/O, Control Cabinet Mount, Modular Frequency Inverter.

Manufacturer: Lenze
DOCS_Lenze i500 Inverter Catalog: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/lenze-i500-inverter-catalog.pdf
Approval: CE
Approval: CSA (Canada and US)
Approval: EAC
Approval: cULus
Constant Torque HP: 7.5
Constant Torque KW: 5.5
Input Voltage: 170 to 264 V AC @ 45 to 65 Hz 3-Ph
Output Voltage: 230/240 V AC @ 60 Hz 3-Ph
Product Type: Modular Frequency Inverter
Size: 90 mm W x 130 mm D x 250 mm H
LINKS_Browse All i500 Series Products: /manufacturers/lenze-americas/i500-series
LINKS_Browse All Lenze Products: /manufacturers/lenze-americas
IP Rating: IP20
Product Family: i500 Series
