Aventics

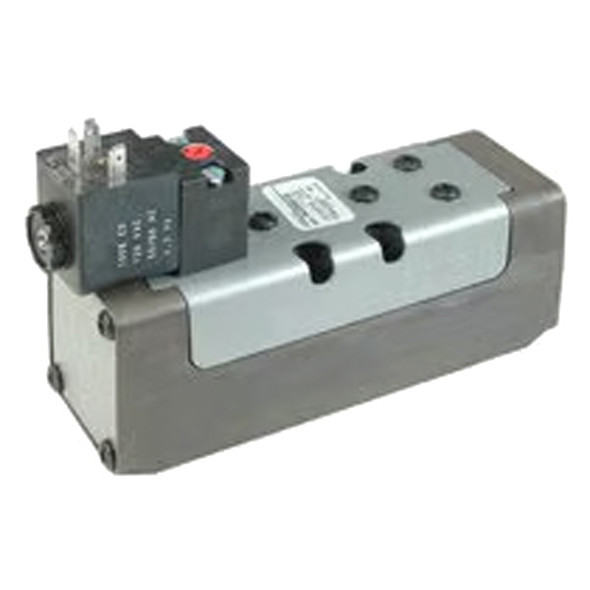

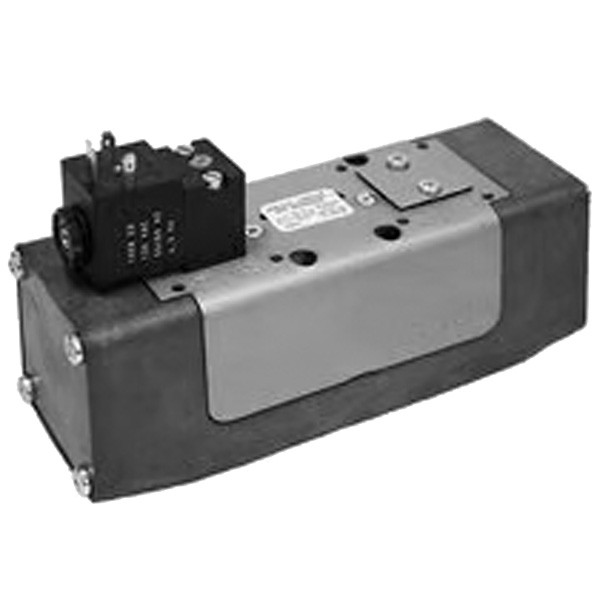

Aventics Series CERAM 5/2-Directional Valve, Electrical Activation, ISO 3 Frame Size, 5/2, with Air Spring Return, Double Solenoid, Ceramic Sealing, Manual Override with Detent/Manual Override without Detent, 4300 l/min Nominal Flow, 0 to 10.3 bar Working Pressure, Plug Connection, EN 175301-803, Form A, 110-120 VAC Operational Voltage, Internal Pilot, 30 mm CNOMO Pilot Valve Width, ISO 5599-1 Standard, -15 to 66 Deg C Ambient Temperature, Die-Cast Aluminum Housing Material.
- Manufacturer: Aventics
- Brand/Division: Numatics
- LINKS_Browse All Aventics Products: /manufacturers/aventics
- Product Category: Valves
- Product Family: Series CERAM
- Product Type: 5/2-Directional Valves
- Electrical Connection Size: "EN 175301-803, Form A"
- Electrical Connection Type: Plug
- Frame Size: ISO 3
- Housing Material: Aluminum
- Manual Override: With Detent, Without Detent
- Max. Ambient Temperature: 66 °C
- Min. Ambient Temperature: -15 °C
- Nominal Flow Qn: 4300 l/min
- Operational Voltage: 110-120 VAC
- Pilot: Internal
- Working Pressure: 0 to 10.3 bar
