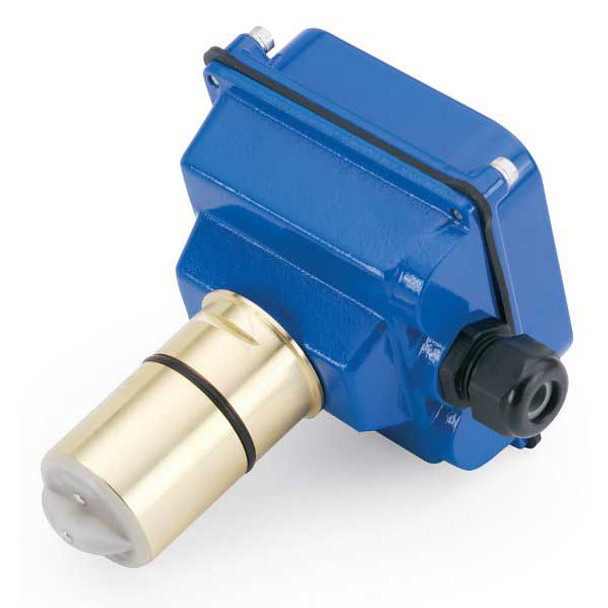

EX810S-125 Seametrics Insertion Electromagnetic Flow Sensor

Image may represent a range of products. Product may vary based on listed specifications.

Seametrics EX-800-Series Insertion Electromagnetic Flow Sensor, 20 uS/cm min for 1-3 in pipe@0.69-440 gpm, 316 SS sensor, 200 psig@200 deg F, 12-25VDC 250mA, sq wave pulse opto isolated output. Viton O-ring (-125) option.

  • Manufacturer: Seametrics
  • Body Material: Cast Powder - Coated Aluminum
  • Flow Range: 0.69 to 440 gpm
  • Max. Pressure: 200 psig
  • Max. Temperature: 200 °F
  • O-Ring Material: Viton
  • Power Type: 250 mA @ 12 to 25 V DC
  • Product Type: Flow Sensors
  • Size: 1 to 3 in.
  • Product Family: EX-Series
  • Product Category: Sensors

EX810S-125
