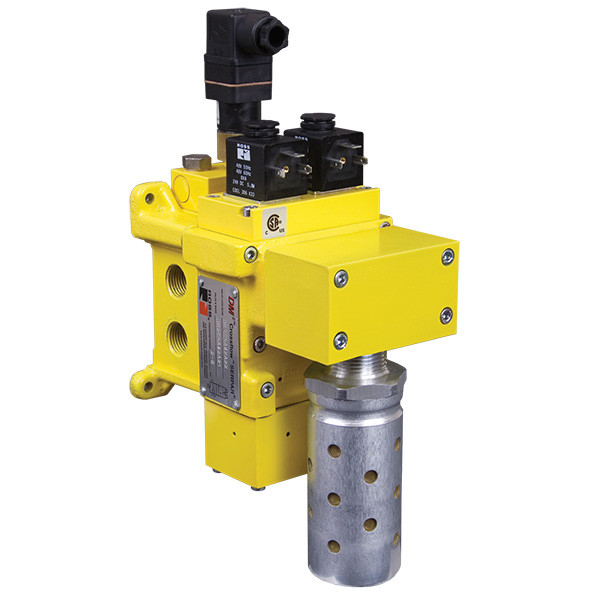

DM2CNA54A21 Ross Controls DM2C Series Redundant Solenoid Valve w/ Mechanical Pressure Switch

Image may represent a range of products. Product may vary based on listed specifications.

Ross Controls DM2C Series Redundant Solenoid Valve w/ Mechanical Pressure Switch, 3/2, Electrical Actuation, 3/4 in. NPT Inlet Size x 3/4 in. NPT Outlet Size, 3/4 in. Exhaust Size, Basic Size 8, Dual Poppet Construction, Base Mount, Solenoid Reset, Fluid Media: Filtered, Lubricated or Unlubricated, EN 175301-803 Form A Solenoid/Feedback Connection, 120 psig Max Operating Pressure, Cast Aluminum Valve Body, Acetal & Stainless Steel Poppet/Spool Material, Buna-N Seal, 24 VDC, 40 to 175 Deg F Media Temperature, EAC, CE, DGUV, SIL3, PL e, Category 4.

Manufacturer: Ross Controls
LINKS_Browse All Ross Controls Products: /manufacturers/ross-controls
Product Category: Valves
Product Family: DM2C Series
Product Type: Solenoid Valves
Actuation Type: Electrical
Mounting Type: Base Mounting
Operating Pressure Range: 120 psig
Seal Material: Buna-N
Valve Body Material: Cast Aluminum
Voltage: 24 VDC
