Image may represent a range of products. Product may vary based on listed specifications.
Flowline

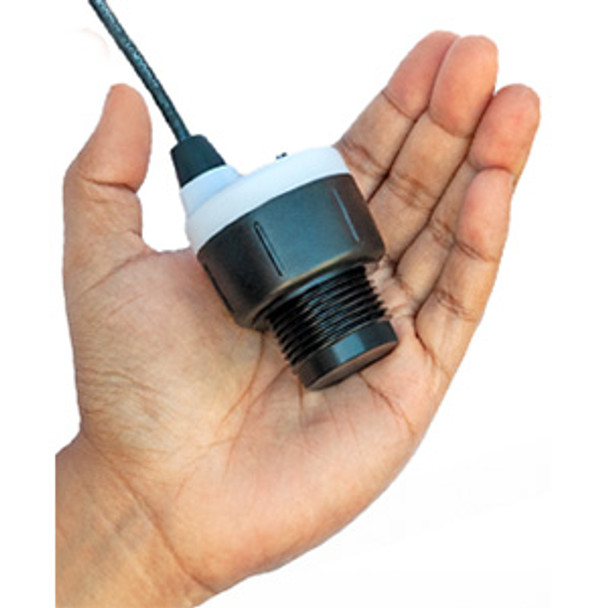

Flowline EchoPod DL10 Ultrasonic Liquid Level Sensor Transmitter, 1 in. NPT, 4-20 mA, w/ Fob
- Manufacturer: Flowline
- CUSTOM_InventoryFilter: In Stock
- DOCS_Flowline EchoPod DL10 Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/flowline-echopod-dl10-ultrasonic-liquid-level-transmitter-datasheet.pdf
- LINKS_Browse All Flowline Products: /manufacturers/flowline
- Product Category: Transmitters
- Product Family: DL10 Series
- Product Type: Liquid Level Sensor Transmitters
- Accuracy: 0.125 in. (3 mm)
- Ambient Temperature: -31 to 140 Deg F
- Beam Width: 2 in.
- Cable Jacket: Polyurethane
- Cable Length: 48 in. (1.2 m)
- Cable Type: 4-Conductor, Shielded
- Classification: General Purpose, Compliance: CE, RoHS, Approvals: cFMus.
- Configuration: WebCal PC, Windows, USB 2.0
- Consumption: 0.5 W
- Dead Band: 2 in.
- Enclosure Material: Polycarbonate
- Enclosure Rating: Type P6, Encapsulated, Corrosion-Resistant & Submersible
- Loop Fail-Safe: 4 mA, 20 mA, 21 mA, 22 mA, or Hold Last
- Loop Resistance: 400 ohm Max
- MWP: 30 PSI
- Memory: Non-volatile
- Mount Gasket: Viton
- Process Mount: 1 in. NPT (1 in. G)
- Process Temperature: 20 to 140 Deg. F
- Range: 49.2 in.
- Resolution: 0.019 in. (0.5 mm)
- Signal Invert: 4-20 mA or 20-4 mA
- Signal Output: 4-20 mA, Two-Wire
- Strain Relief Material: Santoprene
- Supply Voltage: 24 VDC (loop)
- Temperature Compensation: Automatic
- Transducer Material: PVDF
