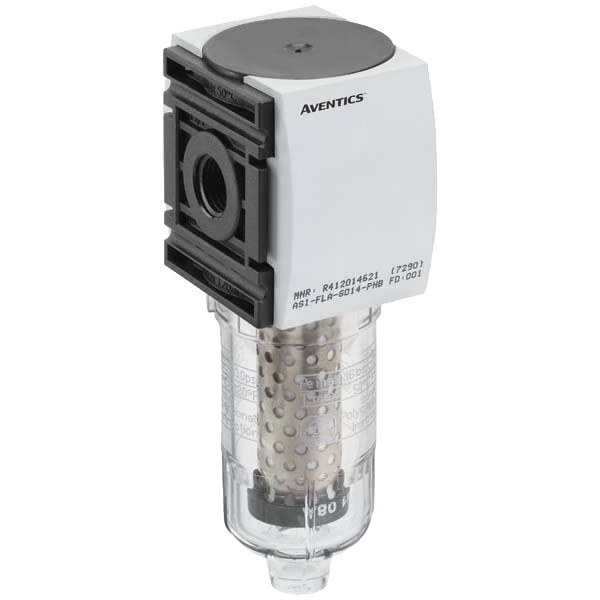

AS1-FLA-G014-PNB-NON Aventics Series AS1-FLA Active Carbon Filter

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series AS1-FLA Active Carbon Filter, Polycarbonate Reservoir, without Protective Guard, G 1/4 Port, 350 l/min Nominal Flow, Air Supply on Left, 0 to 12 bar Working Pressure, -10 to 50 Deg C Ambient Temperature Range, Can be Assembled into Blocks, Vertical Mounting, Exchangeable Filter Element, 12 cm^3 Filter Reservoir Volume, Polyamide Housing Material, Acrylonitrile Butadiene Rubber Seal, Polycarbonate Reservoir, Active Carbon Filter Insert, Acrylonitrile Butadiene Styrene Front Plate.

Manufacturer: Aventics
Brand/Division: Numatics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Parts & Accessories
Product Family: Series AS1
Product Type: Active Carbon Filters
Housing Material: Polyamide
Max. Ambient Temperature: 50 °C
Min. Ambient Temperature: -10 °C
Nominal Flow Qn: 350 l/min
Seal Material: Acrylonitrile Butadiene Rubber
Working Pressure: 0 to 12 bar
