955AOPLPNCSH11 Parker Veriflo 955 Series Diaphragm Valve 1-1/4"

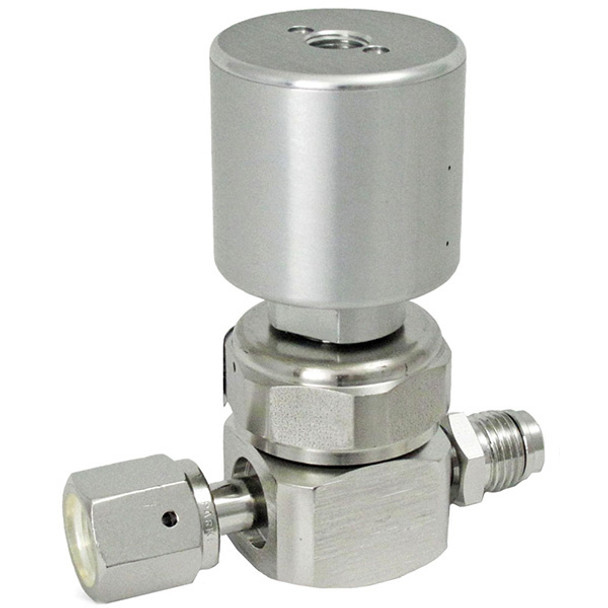

Image may represent a range of products. Product may vary based on listed specifications.

Parker Veriflo, 955 Diaphragm Valve, VeriClean™, 1/4" x 1/4", Tube Stub x Tube Stub, 250 PSIG, Ra Electropolished, 316L Stainless Steel, Anodized Aluminum Air Operated/Normally Closed Actuator, 2-Port, Low Pressure, High Flow, Diaphragm Valve with H Pattern Flow Path.

  • Manufacturer: Parker Hannifin
  • Application: Corrosive and Specialty Gas
  • Body Material: 316L Stainless Steel
  • Diaphragm Material: Elgiloy/Equivalent
  • End Connection: Tube Stub x Tube Stub
  • End To End Distance: 2.25 in.
  • Handle Material: Anodized Aluminum
  • Inclusions And Features: H Pattern Flow Path
  • Nominal Size: 1/4 in. x 1/4 in.
  • Pressure Rating: 250 psig (Operated), 375 psig (Proof), 750 psig (Burst)
  • Product Family: 955 Series
  • Temperature Rating: -40°F to 150°F
  • Valve Type: 2-Port, Low Pressure, High Flow
  • DOCS_Parker Veriflo 935 Series UHP SS Diaphragm Valve Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-935-series-uhp-ss-diaphragm-valve-high-flow-catalog.pdf
  • DOCS_Parker Veriflo 955 Series Specifications Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-veriflo-955-series-specifications-2017.pdf
  • Actuation Type: Air Operated, Normally Closed
  • Application: Semiconductor Tool
  • Application: Tool Hook-Up
  • Application: Gas Cabinet
  • Application: Valve Manifold Box
  • Actuator Type: 2-Port, Low Pressure, High Flow
  • Product Category: Valves
  • Product Type: Diaphragm Valves
  • Brand/Division: Veriflo
  • CUSTOM_Product Type2: Stainless Steel Diaphragm Valves
  • CUSTOM_Product Type2: High Flow Diaphragm Valves

955AOPLPNCSH11
