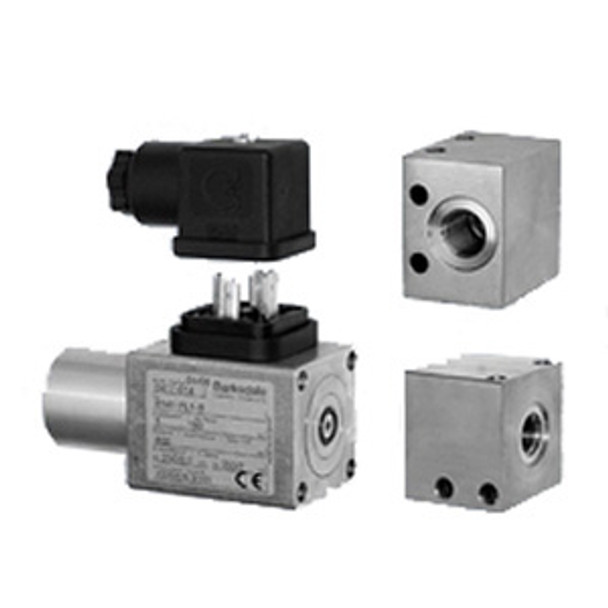

8AD1TB Barksdale Compact Pressure Switch

Image may represent a range of products. Product may vary based on listed specifications.

Barksdale 8000 Series Compact Pressure Switch, 1/4" FPT, 250/125 VAC/30 VDC, 3/5/3 A, 43 to 2610 PSI, SPDT, Silver, NEMA 4, Buna-N Seal/Diaphragm, Factory Preset/Field Adjustable, Compact Pressure Switch.

  • Manufacturer: Barksdale
  • DOCS_Barksdale Series 8000 Operating Instructions: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/barksdale-series-8000-piston-and-diaphragm-pressure-switches-operating-instructions.pdf
  • Application: Baler and Compactor
  • Application: Factory Automation
  • Application: Hydraulic Power Pack
  • Application: Machine Tool
  • Application: Overload Control
  • Application: Railway
  • Approval: CSA
  • Approval: cULus
  • Connection Type: 1/4 in. Female Threaded
  • Contact Configuration: SPDT, Silver
  • Contact Rating: 3 A @ 250 VAC, 5 A @ 125 VAC, 3 A @ 30 VDC
  • Enclosure Material: 230 Die-Cast Aluminum
  • Operating Pressure Rating: 43 to 2610 psi
  • Operator Type: Buna-N Seal/Diaphragm
  • Product Family: 8000 Series
  • Product Type: Pressure Switches
  • Enclosure (NEMA Rating): NEMA 4
  • Product Category: Switches
  • CUSTOM_Product Type2: Compact Pressure Switches

8AD1TB
