8A-B8XJ-SS-61ADX Parker Ball Valve

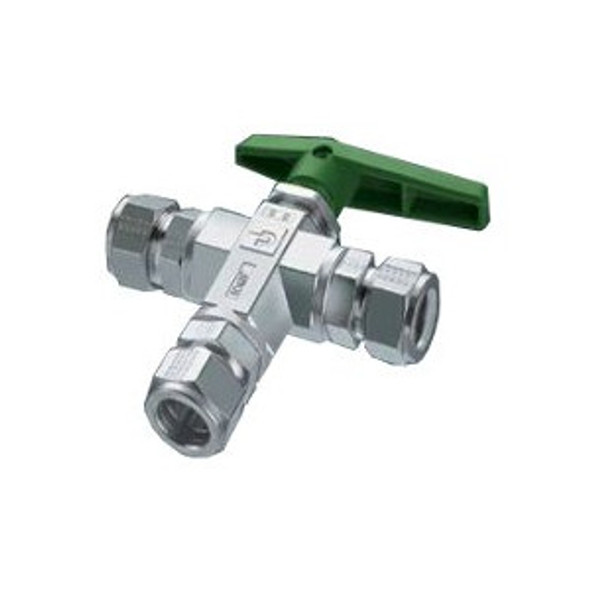

Image may represent a range of products. Product may vary based on listed specifications.

Parker B8X Series Ball Valve, 1/2" x 1/2" x 1/2", A-LOK Double Ferrule Compression x A-LOK Double Ferrule Compression x A-LOK Double Ferrule Compression, 1500 PSIG, Stainless Steel, PTFE Seal, Double Acting Pneumatic Actuator, 3-Way, Diverter, Panel Mount, Ball Valve.

  • Manufacturer: Parker Hannifin
  • Actuator Dimensions: 6.1 in. L x 3.38 in. (Single Mount)/2.36 in. (Dual Mount) H
  • Actuator Type: Dual Opposed Piston, Pneumatic
  • Body Material: ASTM A351 Grade CF3M Stainless Steel
  • End Connection: A-LOK Double Ferrule Compr. x A-LOK Double Ferrule Compr. x A-LOK Double Ferrule Compr.
  • End To End Distance: 4.68 in.
  • Flow Rate: 3.62 Cv
  • Nominal Size: 1/2 in. x 1/2 in. x 1/2 in.
  • Positioner Type: 180 Degree Double Acting
  • Seal Material: PTFE
  • Stem Material: ASTM A276 316 Stainless Steel
  • Temperature Rating: -65° to 350 °F
  • DOCS_Parker B Series Ball Valve Maintenance Instruction: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-b-series-ball-valve-maintenance-instructions-mi-108-rev.pdf
  • DOCS_Parker Three-Way B Series Ball Valves Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-three-way-b-series-ball-valves-catalog-pages-5.pdf
  • Product Family: B Series
  • Product Category: Valves
  • Product Type: Compression Ball Valves
  • Brand/Division: Instrumentation Products

8A-B8XJ-SS-61ADX
