8A-B8LJ2-SS-72D Parker Ball Valve

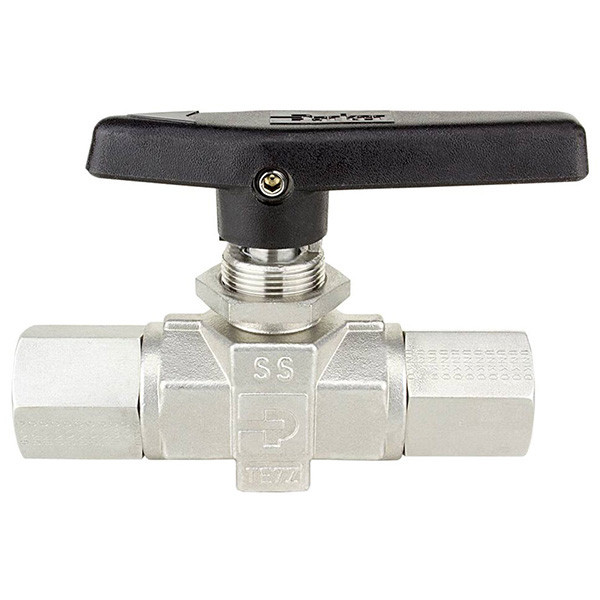

Image may represent a range of products. Product may vary based on listed specifications.

Parker B8L Series Ball Valve, 1/2" x 1/2", A-LOK Double Ferrule Compression x A-LOK Double Ferrule Compression, 6000/4000 PSIG CWP, Stainless Steel, PTFE Seal, Single Direction Electric Actuator, 2-Way, In-Line, Panel Mount, Ball Valve.

Manufacturer: Parker Hannifin
DOCS_Parker Two-Way B Series Ball Valves Datasheet: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-two-way-b-series-ball-valves-catalog-3.pdf
DOCS_Parker B Series Ball Valve Maintenance Instruction: https://cdn11.bigcommerce.com/s-ca10qrhzok/content/documents/parker-b-series-ball-valve-maintenance-instructions-mi-108-rev.pdf
Actuator Dimensions: 4.73 in. L x 5.95 in. W
Actuator Type: Electric
Body Material: ASTM A351 Grade CF3M Stainless Steel
End Connection: A-LOK Double Ferrule Compr. x A-LOK Double Ferrule Compr.
End To End Distance: 4.68 in.
Flow Rate: 6.42 Cv
Input Supply Rating: 24 VDC @ 50/60 Hz
Nominal Size: 1/2 in. x 1/2 in.
Positioner Type: Single Direction
Seal Material: PTFE
Stem Material: ASTM A276 316 Stainless Steel
Supply Connection: 1/2 in.-14 TPI Threaded
Temperature Rating: -65° to 350 °F
LINKS_Browse All B Series Products: /manufacturers/parker/b-series
LINKS_Browse All Parker Hannifin Products: /manufacturers/parker
CUSTOM_Request a Quote for Availability: TRUE
Enclosure (NEMA Rating): NEMA 4/4X
Product Family: B Series
Product Category: Valves
Product Type: Ball Valves
Voltage: DC 24 V
Brand/Division: Instrumentation Products
CUSTOM_Product Type2: Compression Ball Valves
