857-727 WAGO 857 Series Plug-In Input Solid-State / Static Relay (SSR) w/ Pre-Assembled Socket Base + Yellow Led - 2-Wire Connection

Image may represent a range of products. Product may vary based on listed specifications.

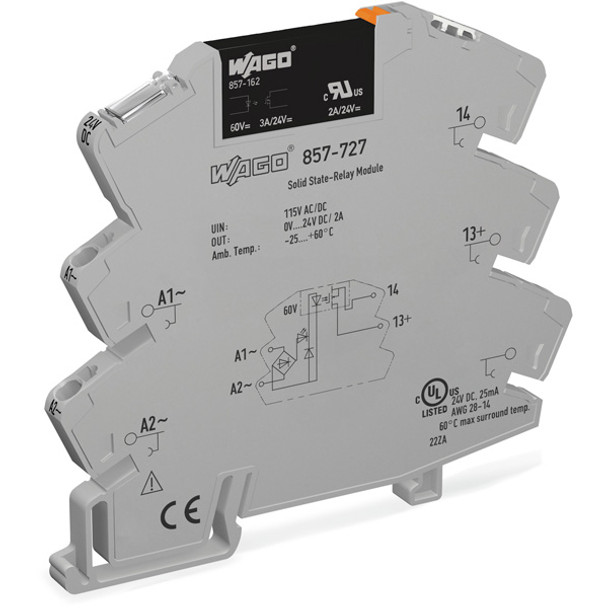

WAGO 857 Series Plug-in input solid-state / static relay (SSR) with pre-assembled socket base + yellow LED, 2-wire connection, single-pole / single-phase / 1-pole (1P), control voltage 90-138Vac (115Vac nom.)/90-138Vdc (115Vdc nom.), Rated voltage 0-30Vdc (24Vdc nom.) output, Rated current 3A (continuous), with Push-in CAGE CLAMP spring connections, DIN-35 rail mounting (6mm width), IP20, equivalent to 857727.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 857 Series
Product Category: Connectivity
Product Type: SSRs
Ambient air temperature for operation: -20°C...+70°C
Ambient air temperature for storage: -40°C...+70°C
Ambient temperature (operation at UN): -20 | 70 °C
Basic relay - WAGO Basic Relay: 857-162
Connection technology: Push-in CAGE CLAMP<sup>®</sup>
Connection type (electrical): Plug-in|Terminals (Cage-clamp)
Control Voltage (AC): 90-138Vac (115Vac nom.)
Control Voltage (AC): 100Vac|110Vac|120Vac
Control Voltage (DC): 90-138Vdc (115Vdc nom.)
Control Voltage (DC): 100Vdc| 110Vdc| 120Vdc| 127Vdc
Control circuit - Input voltage range (high level): AC/DC 90 | 138 V
Control circuit - Input voltage range (low level): AC/DC 0 | 25 V
Control circuit - Nominal input current at UN: 3.9 mA
Control circuit - Nominal input voltage UN: AC/DC 115 V
Degree of pollution: 2
Degree of protection: IP20
Depth from upper-edge of DIN-rail: 81 mm / 3.189 inches
Dielectric strength (control/load circuit) (AC, 1 min): 3.51 kVrms
Dimensions: H94mm x W6mm x D81mm|6mm width
Fine-stranded conductor: 0.34 | 2.5 mm² / 22 | 14 AWG
Fine-stranded conductor; with insulated ferrule: 0.34 | 1.5 mm² / 22 | 16 AWG
Fire load: 0.492MJ
Frequency: 20Hz switching frequency
General approvals additional text: TP TC 004/2011|TP TC 020/2011|UL 508
Height: 94 mm / 3.701 inches
Humidity: 5-85% relative humidity (RH; no condensation permissible)
Insulation type (between adjacent devices of the same type): Reinforced insulation (safe isolation)
Insulation type (control/load circuit): Basic insulation
Insulation type (to adjacent devices of different types): Basic insulation
Load circuit - Circuit type: 2-wire connection
Load circuit - Inrush current (resistive) max.: (AC) 15 A / 0.01 s
Load circuit - Limiting continuous current: 0.125
Load circuit - Nominal output voltage: DC 24 V
Load circuit - Output voltage range: DC 0 | 30 V
Load circuit - Switching current (min.): 50 µA
Load circuit - Switching frequency: ≤ 20 Hz
Load circuit - Turn-off time: ≤ 10 ms
Load circuit - Turn-on time: ≤ 4.5 ms
Mounting mode: DIN rail
Mounting position: Horizontal (standing/lying); vertical
Operating altitude (max.): 2000m
Overvoltage category: III
Poles: single-pole / single-phase / 1-pole (1P)
Poles: 1P
Pollution degree: 2
Processing temperature: -25 | +50 °C
Protection type: IP20
Rated Voltage (DC): 0-30Vdc (24Vdc nom.) output
Relative humidity: 5 | 85 % (no condensation permissible)
Response time: (switching ON) 4.5ms / 0.0045s|(switching OFF) 10ms / 0.010s
Signaling - Status indicator: Yellow LED
Solid conductor: 0.34 | 2.5 mm² / 22 | 14 AWG
Standards and specifications - Standards/specifications: EN 61000-6-2|EN 61000-6-3|EN 61373|EN 61010-2-201|UL 508
Surrounding air temperature (storage): -40 | +70 °C
Temperature range of connection cable per EN 61010-2-201: ≥ (T<sub>ambient</sub> + 30 K)
Weight: 30.1g
Width: 6 mm / 0.236 inches
