753-662/000-004 WAGO 753 Series Pluggable Fail-Safe / Safety DC Digital Input Slice Module - Safety Sil3/Cat4/Ple Or Sil2/Cat2/Pld

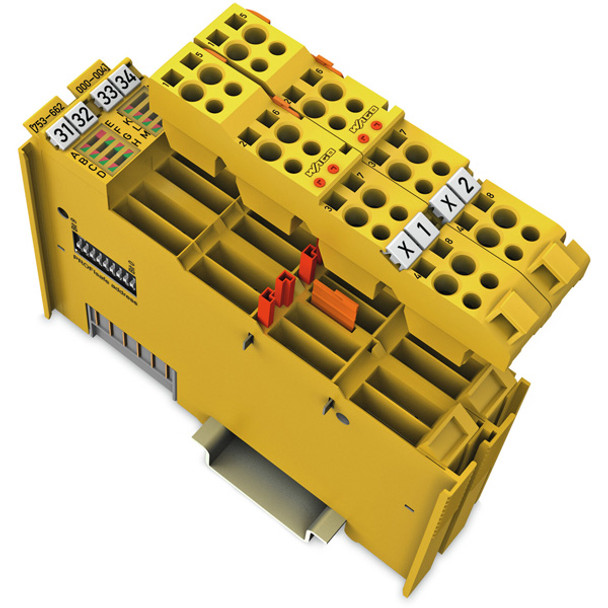

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 753 Series Pluggable fail-safe / safety DC digital input slice module, Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld, 8I/O [8DI (8 x digital inputs (fail-safe inputs with test pulse; type-1; clock sensitive; 24Vdc))], with PROFIsafe communication capability, supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (24mm width), IP20, rated for 0°C...+55°C ambient, compliant with IEC61508-1; IEC61508-2; IEC61508-3; IEC61508-4; IEC61508-5; IEC61508-6; IEC61508-7; EN ISO13849-1; EN 62061, replaces obsolete component(s) 753-662/000-003, equivalent to 753662000004.

  • Manufacturer: WAGO
  • Product Family: 753 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -25°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Approvals for functional safety: Prod. Safety, Funct. Safety-TUEV Rheinland Industrie Service GmbH|Profi-Safe-Siemens AG/ComDeC
  • Approvals for marine applications additional text: DNV-CG-0339,Aug.2021
  • Class: Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld
  • Communication protocol: PROFIsafe
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 120mA
  • Current consumption, field supply (module with no external load): 35mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: 8
  • Digital inputs type: DC
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W24mm x D67.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 1.577MJ
  • General approvals additional text: UL 61010-2-201
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input characteristic: Type 1 per IEC 61131
  • Input current per channel for signal (1) typ.: 3mA
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: Horizontal (standing/lying); vertical
  • Net Width (mm): 24mm
  • Number of digital inputs: 8
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Output current per channel: 0.1A
  • Pluggable connector: Pluggable
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Replaces: 753-662/000-003
  • Safety standards: IEC 61508-1 | -7; EN ISO 13849-1; EN 62061
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal frequency (max.): 50Hz
  • Signal type: Voltage
  • Signal type (voltage): 24 VDC
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Surrounding air temperature (storage): -25 | +85 °C
  • Total number of channels (module): 8
  • Vibration resistance: 4g per IEC 60068-2-6
  • Weight: 81.3g
  • Width: 24 mm / 0.945 inches
  • Connection type (electrical): Terminals (Cage-clamp)

753-662/000-004
