Image may represent a range of products. Product may vary based on listed specifications.
WAGO

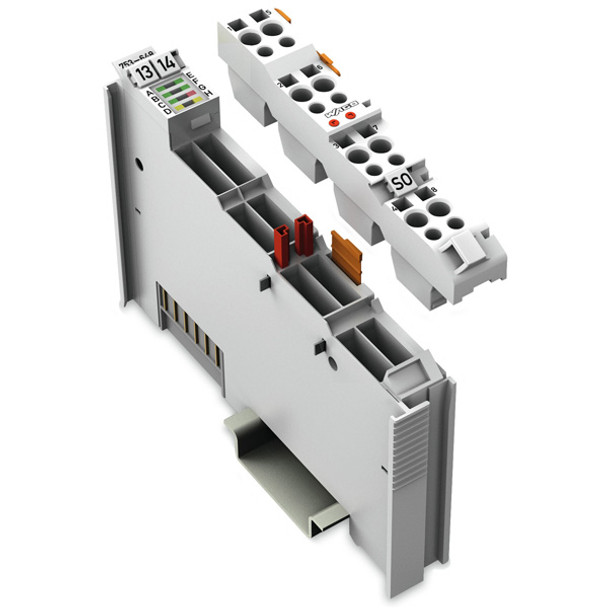

WAGO 753 Series LON-FTT comunications interface slice module with plug-in connector, LON FTT Interface, 249 x network variables / 127 x aliases connection capability, with LONworks communication capability, supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, compliant with ISO14908, equivalent to 753648.
- Manufacturer: WAGO
- LINKS_Browse All WAGO Products: /manufacturers/wago
- Product Family: 753 Series
- Product Category: Connectivity
- Product Type: Communications Slice Modules
- Ambient air temperature for operation: 0°C...+55°C
- Ambient air temperature for storage: -25°C...+85°C
- Ambient temperature (operation): 0 | +55 °C
- Communication protocol: LONworks
- Conformity marking: CE
- Connection capacity: 249 x network variables / 127 x aliases
- Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
- Current consumption (5 V system supply): 30mA
- Degree of pollution: 2
- Degree of protection: IP20
- Depth: 69 mm / 2.717 inches
- Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
- Dimensions: H100mm x W12mm x D69mm
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Fire load: 1.033MJ
- General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
- Height: 100 mm / 3.937 inches
- Housing Material: Polycarbonate; polyamide 6.6
- Humidity: 95% relative humidity (RH; non-condensing)
- Isolation: 500 V system/field
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Mounting mode: DIN rail
- Mounting position: horizontal (standing/lying); vertical
- Net Width (mm): 12mm
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Pluggable connector: Pluggable
- Pollution degree (5): 2 per IEC 61131-2
- Protection type: IP20
- Relative humidity (without condensation): 0.95
- Shock resistance: 15g per IEC 60068-2-27
- Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Supply voltage (DC): 5Vdc (supplied by system)
- Supply voltage (DC): 5Vdc
- Surrounding air temperature (storage): -25 | +85 °C
- Vibration resistance: per IEC 60068-2-6
- Weight: 54.8g
- Width: 12 mm / 0.472 inches
- Connection type (electrical): Terminals (Cage-clamp)
