753-511 WAGO 753 Series Pluggable Pulse Output Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

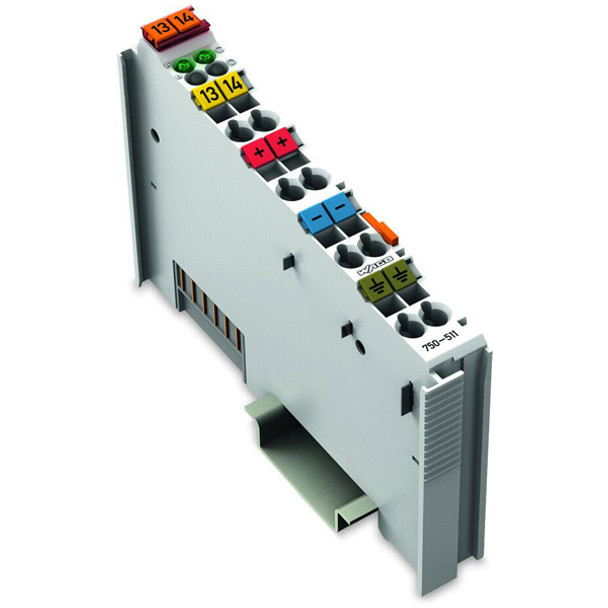

WAGO 753 Series Pluggable pulse output slice module, 2PWM; 24Vdc; 0.1A; 250Hz, 2I/O [2DO (2 x digital outputs (PWM; 0.1A; 250Hz / 10-bits duty factor control resolution))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 753511.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 753 Series
Product Category: Connectivity
Product Type: Output Module
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -25°C...+85°C
Ambient temperature (operation): 0 | +55 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current consumption (5 V system supply): 70mA
Current consumption, field supply (module with no external load): 15mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
Digital inputs quantity: no digital inputs
Digital outputs quantity: 2
Digital outputs type: DC
Dimensions: H100mm x W12mm x D69.8mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
General approvals additional text: TP TC 020/2011|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Isolation: 500 V system/field
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of digital outputs: 2
Number of incoming power jumper contacts: 3
Number of outgoing power jumper contacts: 3
Output current per channel: 0.1A
Pluggable connector: Pluggable
Pollution degree (5): 2 per IEC 61131-2
Protection type: IP20
Pulse frequency: 250 Hz
Relative humidity (without condensation): 0.95
Resolution [bit]: 10bits
Shock resistance: 15g per IEC 60068-2-27
Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
Surrounding air temperature (storage): -25 | +85 °C
Vibration resistance: per IEC 60068-2-6
Weight: 44.3g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
