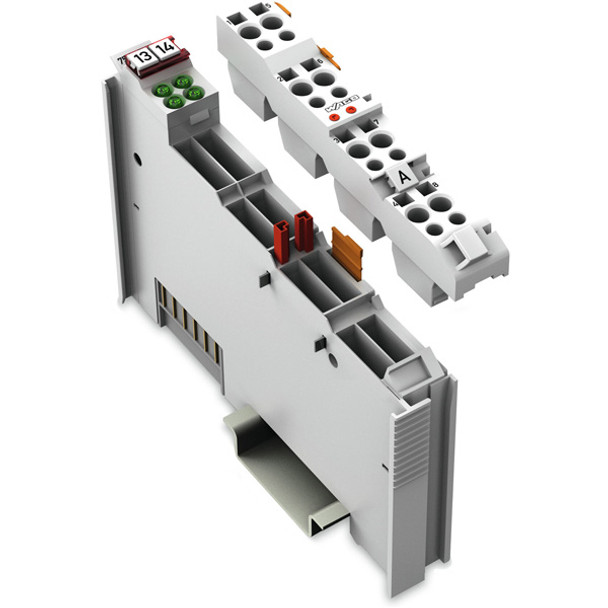

WAGO 753 Series Pluggable DC digital output slice module, 4DO; 24Vdc; 0.5A, 4I/O [4DO (4 x digital outputs (24Vdc / 500mA; high-side switching; 2-wire / 3-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 753504.
- Manufacturer: WAGO
- LINKS_Browse All WAGO Products: /manufacturers/wago
- Product Family: 753 Series
- Product Category: Connectivity
- Product Type: Output Module
- Ambient air temperature for operation: 0°C...+55°C
- Ambient air temperature for storage: -40°C...+85°C
- Ambient temperature (operation): 0 | +55 °C
- Analog inputs quantity: no analog inputs
- Analog outputs quantity: no analog outputs
- Approvals for marine applications additional text: -|-|-|DNV-CG-0339,Aug.2021|-|-|-|-
- Conformity marking: CE
- Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
- Current consumption (5 V system supply): 10mA
- Current consumption, field supply (module with no external load): 30mA
- Degree of pollution: 2
- Degree of protection: IP20
- Depth: 69.8 mm / 2.748 inches
- Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
- Digital inputs quantity: no digital inputs
- Digital outputs quantity: 4
- Digital outputs type: DC
- Dimensions: H100mm x W12mm x D69.8mm
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Fire load: 1.363MJ
- Frequency: 1kHz switching frequency
- General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3
- Height: 100 mm / 3.937 inches
- Housing Material: Polycarbonate; polyamide 6.6
- Humidity: 95% relative humidity (RH; non-condensing)
- Isolation: 500 V system/field
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Mounting mode: DIN rail
- Mounting position: horizontal (standing/lying); vertical
- Net Width (mm): 12mm
- Number of digital outputs: 4
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Output characteristic: high-side switching
- Output current per channel: 0.5A
- Output data width (internal) max.: 4bits
- Pluggable connector: Pluggable
- Pollution degree (5): 2 per IEC 61131-2
- Protection type: IP20
- Relative humidity (without condensation): 0.95
- Shock resistance: 15g per IEC 60068-2-27
- Signal type: Voltage
- Signal type (voltage): 24 VDC
- Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
- Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
- Surrounding air temperature (storage): -25 | +85 °C
- Switching frequency (max.): 1 kHz
- Total number of channels (module): 4
- Vibration resistance: 4g per IEC 60068-2-6
- Weight: 43g
- Width: 12 mm / 0.472 inches
- Connection type (electrical): Terminals (Cage-clamp)
