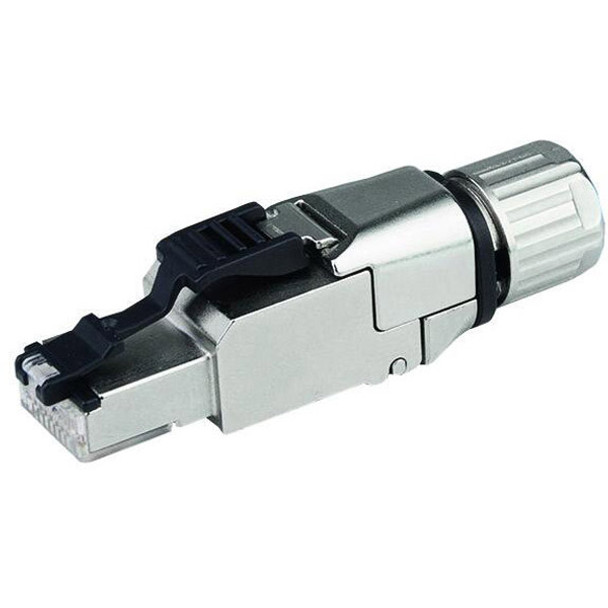

750-978/000-021 WAGO 750 Series Ethernet Cat.6A Connector (Tia-568A) w/ Strain Relief Plate

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Ethernet Cat.6a connector (TIA-568A) with strain relief plate, 8-poles (8P), for 0.13mm2...0.21mm2 / for #26AWG...#24AWG, with RJ45 connector + IDC (Insulation Displacement contact) for 0.11-0.23mm2 cables, IP20, Straight shape, Cat.6a, equivalent to 750978000021.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Connectors
Ambient air temperature for operation: -40°C...+85°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +85 °C
Cable category: Cat.6a
Cable connection direction to mating direction: 0°
Communication/fieldbus: Ethernet
Connection requirement (permissible cable type): Cat. 6 A
Connection type: RJ-45 plug
Connection type (electrical) (filter / rank = 0005030): RJ-45 connector
Cross-section (mm2): 0.14mm2| 0.2mm2
Degree of protection: IP20
Depth: 56.6 mm
Dimensions: H16.3mm x W13.9mm x D56.6mm
Electrical connection gender: Male
Electrical connection pinout: 8-pin
General approvals additional text: UL 1977
Height: 16.3 mm
Housing Material: Zinc die casting
Humidity: 95% relative humidity (RH; non-condensing)
Material: Die-casting Zinc housing
Pole number: 8
Poles: 8-poles (8P)
Protection type: IP20
Relative humidity (without condensation): 0.95
Shape: Straight
Shape: Straight shape
Solid conductor: 0.13 | 0.21 mm² / 26/1 | 24/1 AWG
Standards/specifications: IEC60603-7-51, ISO/IEC 11801, IEEE 802.3an|EIA/TIA 568-C.2|DIN EN 50173-1|UL 1863|UL 2043
Stranded conductor 2: 0.11 | 0.23 mm² / 27/7 | 24/7 AWG
Surrounding air temperature (storage): -40 | +85 °C
Weight: 22g
Width: 13.9 mm
Connection type (electrical): RJ-45 connector
