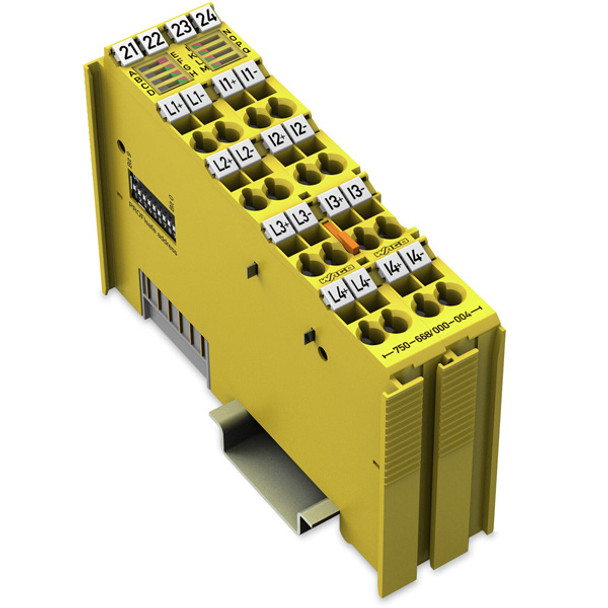

750-668/000-004 WAGO 750 Series Fail-Safe / Safety Analog Input Slice Module - Safety Sil3/Cat4/Ple Or Sil2/Cat2/Pld

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Fail-safe / safety analog input slice module, Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld, 4I/O [4AI (2 x analog inputs (0-20mA / 4-20mA; Differential; 16-bits; 2-wire / 3-wire / 4-wire))], with PROFIsafe communication capability, supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (24mm width), IP20, rated for 0°C...+55°C ambient, compliant with IEC61508-1; IEC61508-2; IEC61508-3; IEC61508-4; IEC61508-5; IEC61508-6; IEC61508-7; EN ISO13849-1; EN 62061, equivalent to 750668000004.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -25°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog input resolution: 16-bit
  • Analog inputs quantity: 4
  • Analog outputs quantity: no analog outputs
  • Approvals for functional safety: Prod. Safety, Funct. Safety-TUEV Rheinland Industrie Service GmbH
  • Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021
  • Class: Safety SIL3/Cat4/Ple or SIL2/Cat2/Pld
  • Communication protocol: PROFIsafe
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 120mA
  • Current consumption, field supply (module with no external load): 40mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W24mm x D67.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 1.965MJ
  • General approvals additional text: TP TC 020/2011|UL 61010-2-201
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Isolation: 500 V system/field
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Measurement error (reference temperature): 25°C
  • Measurement error, deviation (max.) from the upper-range value: 0.0005
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 24mm
  • Noise rejection at sampling frequency: 38dB
  • Number of analog inputs: 4
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Output current per channel: 1.5A
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Resolution [bit]: 16bits
  • Safety standards: IEC 61508-1 | -7; EN ISO 13849-1; EN 62061
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal characteristics: Differential
  • Signal type: Current
  • Signal type (current): 0 | 20 mA; 4 | 20 mA
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Surrounding air temperature (storage): -25 | +85 °C
  • Temperature error (max.) of the upper-range value: 0.006%/K
  • Total number of channels (module): 4
  • Weight: 103.4g
  • Width: 24 mm / 0.945 inches
  • Connection type (electrical): Terminals (Cage-clamp)

750-668/000-004
