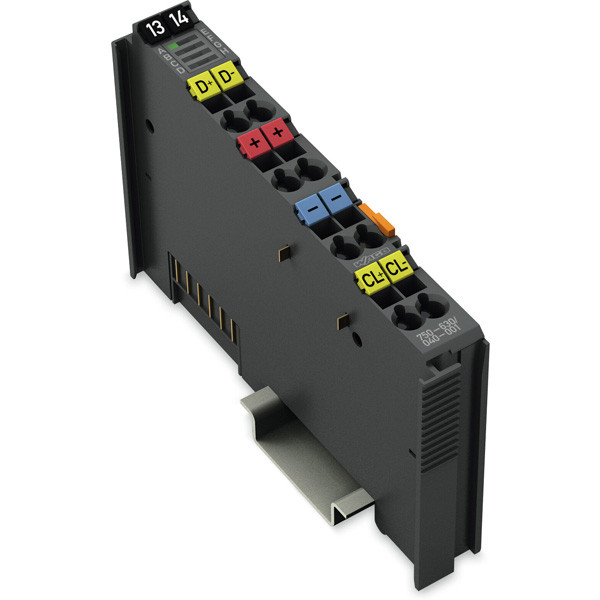

750-630/040-001 WAGO 750 Series Ssi Transmitter Interface Unit w/ Extended Temperature Range + Gray Code / Binary Code

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series SSI transmitter interface unit with extended temperature range + Gray code / binary code, (750 XTR), SSI Interface; Adjust; XTR, 1I/O [1DI (1 x digital input (SSI / On; +D / -D / Off; +CI / -CI encod. Input (adjustable); 1-32-bits / 125kHz / differential (RS-422)))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -40°C...+70°C ambient, equivalent to 750630040001.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Transmitters Interface Units
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +70 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021|-|-|-
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current carrying capacity (power jumper contacts): 10A
Current consumption (5 V system supply): 20mA
Data transmission rate: 125kHz
Degree of pollution: 2
Degree of protection: IP20
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Digital inputs quantity: 1
Digital inputs type: DC|Counter
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W12mm x D67.8mm
Encoder connection: On + D, -D / Off + CI, - CI
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Fire load: 0.147MJ
General approvals additional text: TP TC 020/2011|UL 61010-2-201
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Pollution degree (5): 2 per IEC 61131-2
Protection type: IP20
Relative humidity (without condensation): 0.95
Serial input: Data width: 1 | 32 bits
Shock resistance: per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Signal type: Differential signal (RS-422)
Solid conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Sub-range name: XTR
Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
Supply voltage (encoder): 24 VDC; via power jumper contacts
Surrounding air temperature (storage): -40 | +85 °C
Vibration resistance: per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight: 65.4g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
