750-532 WAGO 750 Series Standard DC Digital Output Slice Module w/ Diagnostics

Image may represent a range of products. Product may vary based on listed specifications.

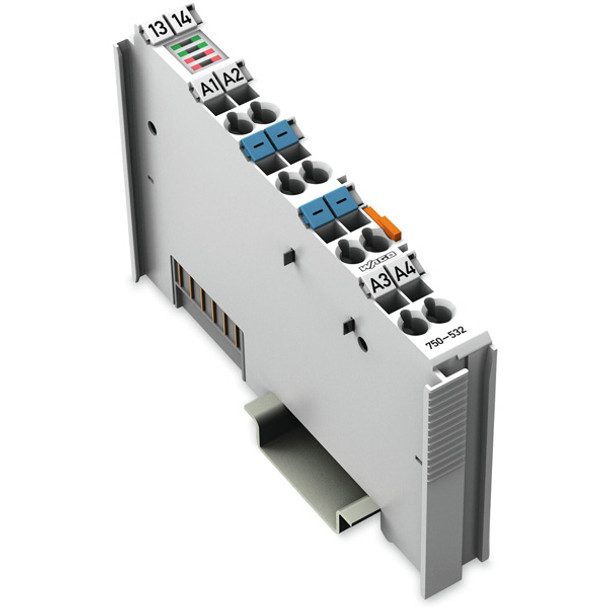

WAGO 750 Series Standard DC digital output slice module with diagnostics, 4DO; 24Vdc; 0.5A; Diagn, 4I/O [4DO (4 x digital outputs (24Vdc / 500mA; high-side switching; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750532.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Output Module
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|-|DNV-CG-0339,Aug.2021|-|-|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 10mA
  • Current consumption, field supply (module with no external load): 13mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: 4
  • Digital outputs type: DC
  • Dimensions: H100mm x W12mm x D67.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 0.954MJ
  • Frequency: 2kHz switching frequency
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input data width (internal) max.: 4bits
  • Isolation: 500 V system/field
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Number of digital outputs: 4
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Open-circuit detection: 0.9mA
  • Output characteristic: high-side switching
  • Output current per channel: 0.5A
  • Output data width (internal) max.: 4bits
  • Pluggable connector: Fixed
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Reverse voltage protection: yes
  • Shock resistance: 15g per IEC 60068-2-27
  • Short-circuit limitation (typ.) PWM: 6A
  • Signal type: Voltage
  • Signal type (voltage): 24 VDC
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
  • Surrounding air temperature (storage): -25 | +85 °C
  • Switching frequency (max.): 2 kHz
  • Total number of channels (module): 4
  • Vibration resistance: 4g per IEC 60068-2-6
  • Weight: 48g
  • Width: 12 mm / 0.472 inches
  • Connection type (electrical): Terminals (Cage-clamp)
