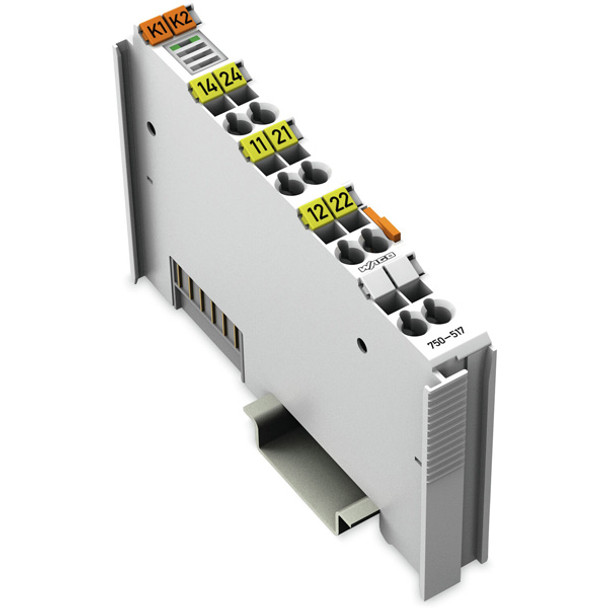

750-517 WAGO 750 Series Standard AC Digital Rly. Output Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard AC digital rly. output slice module, 2RO; 250 VAC; 1A; Pot.-free; Rly. 2CO, 2I/O [2DO (2 x digital outputs (C/O rly. contacts (potential-free); 1A at 250Vac/40Vdc / 0.15A at 300Vdc; 1-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750517.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Output Module
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|-|DNV-CG-0339,Aug.2021|-|-|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Contact material: Ag alloy
  • Current consumption (5 V system supply): 90mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: 2
  • Digital outputs type: AC|DC|Relay (Form-C)|Relay (type NO/NC)|Relay (type SPDT)|Relay (type 1a1b)
  • Dimensions: H100mm x W12mm x D67.8mm
  • Drop-out time (max.): 4ms
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 1.007MJ
  • Frequency: 0.1Hz switching frequency
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Isolation: 1500 V (system/field)
  • Load type of switching frequency: Nominal load
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Number of digital outputs: 2
  • Output characteristic: potential-free
  • Output circuit design: 2 changeover contacts|Relay
  • Output data width (internal) max.: 2bits
  • Pluggable connector: Fixed
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Pull-in time (max.): 8ms
  • Relative humidity (without condensation): 0.95
  • Shock resistance: 15g per IEC 60068-2-27
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Surrounding air temperature (storage): -25 | +85 °C
  • Switching current (max.): 1A
  • Switching current (min.): 100mA
  • Switching frequency (max.): 0.1 Hz; Nominal load
  • Switching voltage (max.): 250 VAC, 300 VDC
  • Switching voltage (min.): 12V
  • Total number of channels (module): 2
  • Vibration resistance: 4g per IEC 60068-2-6
  • Weight: 52.4g
  • Width: 12 mm / 0.472 inches
  • Connection type (electrical): Terminals (Cage-clamp)

750-517
