750-495/040-000 WAGO 750 Series Standard Analog Input Slice Module w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

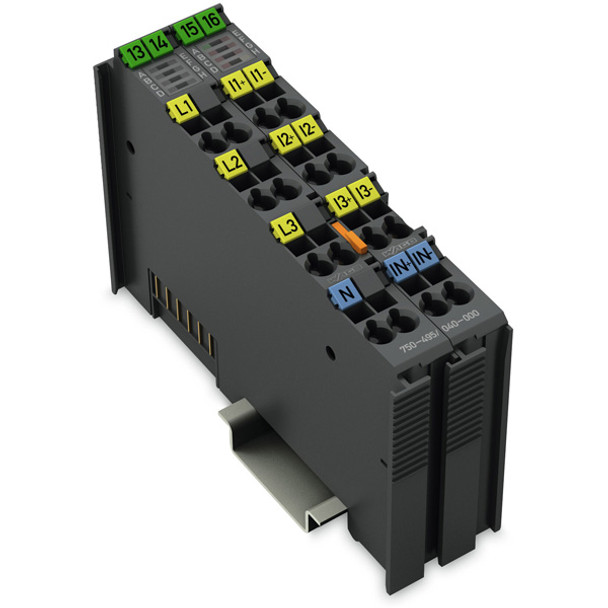

WAGO 750 Series Standard analog input slice module with extended temperature range, (750 XTR), 3-PHASE POM; 690VAC 1A; XTR, 7I/O [7AI (3 x analog inputs (3-phase voltage measurement; 400Vac / 690Vac / 45...65Hz / 24-bits conversion) + 4 x analog inputs (differential current measurement; 1A))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (24mm width), IP20, rated for -40°C...+70°C ambient, equivalent to 750495040000.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Input Modules
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +70 °C
Analog input resolution: 24-bit
Analog inputs quantity: 7
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021|-|-|-
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current consumption (5 V system supply): 100mA
Current path input resistance (typ.): 22 m
Degree of pollution: 2
Degree of protection: IP20
Depth: 67.8 mm / 2.669 inches
Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
Dielectric strength: 2.5 kV (AC)/3.5 kV (DC); per EN 60870-2-1
Digital inputs quantity: no digital inputs
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W24mm x D67.8mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Fire load: 0.273MJ
Frequency range (harmonics analysis): 0 | 3300 Hz
Frequency range (mains frequency): 45 | 65 Hz
General approvals additional text: TP TC 020/2011|TP TC 004/2011|Article 58-2, Clause 3
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Limit frequency: 15.9kHz
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Measurement error (reference temperature): 25°C
Measurement error, deviation (max.) from the upper-range value: 0.005
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 24mm
Pollution degree (5): 2 per EN 60664-1
Protection type: IP20
Reference for measurement error: AC current/voltage
Relative humidity (without condensation): 0.95
Resolution [bit]: 24bits
Shock resistance: per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Signal type: Power measurement
Solid conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
Sub-range name: XTR
Supply voltage (DC): 5Vdc (supplied by system)
Surrounding air temperature (storage): -40 | +85 °C
Vibration resistance: per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Voltage path input resistance (typ.): 1429k
Weight: 92.5g
Width: 24 mm / 0.945 inches
Connection type (electrical): Terminals (Cage-clamp)
