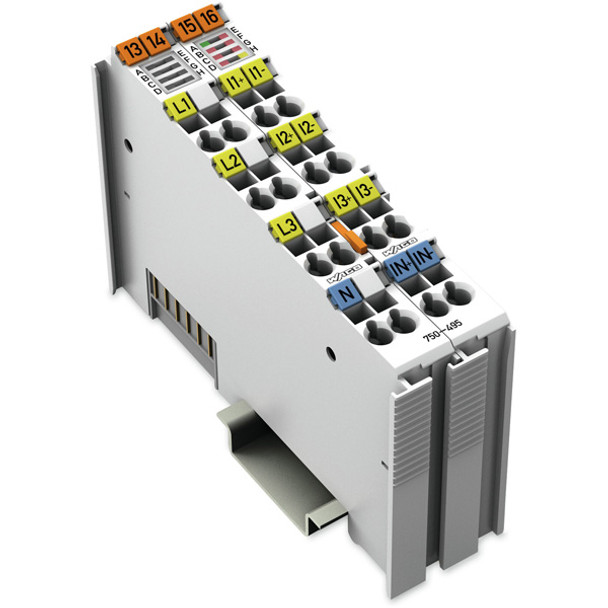

750-495 WAGO 750 Series Standard Analog Input Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard analog input slice module, 3-PHASE POM; 690VAC 1A, 7I/O [7AI (3 x analog inputs (3-phase voltage measurement; 400Vac / 690Vac / 45...65Hz / 24-bits conversion) + 4 x analog inputs (differential current measurement; 1A))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750495.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog input resolution: 24-bit
  • Analog inputs quantity: 7
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Current consumption (5 V system supply): 100mA
  • Current path input resistance (typ.): 22 m
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W24mm x D67.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 1.947MJ
  • Frequency range (harmonics analysis): 0 | 3300 Hz
  • Frequency range (mains frequency): 45 | 65 Hz
  • General approvals additional text: TP TC 020/2011|TP TC 004/2011|Article 58-2, Clause 3
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Isolation: 6 kV system/field
  • Limit frequency: 15.9kHz
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Measurement error (reference temperature): 25°C
  • Measurement error, deviation (max.) from the upper-range value: 0.005
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Pollution degree (5): 2
  • Protection type: IP20
  • Reference for measurement error: AC current/voltage
  • Relative humidity (without condensation): 0.95
  • Resolution [bit]: 24bits
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal type: Power measurement
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)
  • Surrounding air temperature (storage): -25 | +85 °C
  • Vibration resistance: 4g per IEC 60068-2-6
  • Voltage path input resistance (typ.): 1429k
  • Weight: 90.7g
  • Width: 24 mm / 0.945 inches
  • Connection type (electrical): Terminals (Cage-clamp)

750-495
