750-486/040-000 WAGO 750 Series Intrinsically-Safe Analog Input Slice Module w/ Extended Temperature Range
WAGO

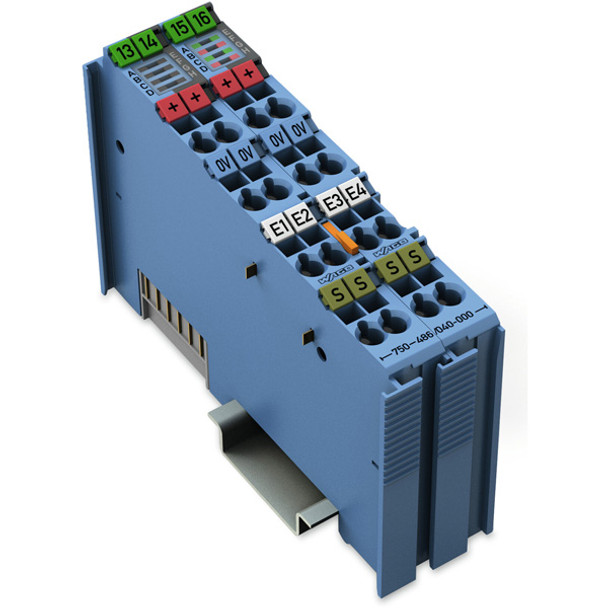

WAGO 750 Series Intrinsically-safe analog input slice module with extended temperature range, (750 XTR), 4AI; 0/4-20mA; Ex i; XTR, 4I/O [4AI (4 x analog inputs (0-20mA / 4-20mA / 3.6-21mA; Single-ended; 12-bits / 10ms conversion; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (24mm width), IP20, rated for -40°C...+70°C ambient, equivalent to 750486040000.
- Manufacturer: WAGO
- LINKS_Browse All WAGO Products: /manufacturers/wago
- Product Family: 750 Series
- Product Category: Connectivity
- Product Type: Input Modules
- Ambient air temperature for operation: -40°C...+70°C
- Ambient air temperature for storage: -40°C...+85°C
- Ambient temperature (operation): -40 | +70 °C
- Analog input resolution: 12-bit
- Analog inputs quantity: 4
- Analog outputs quantity: no analog outputs
- Approvals for marine applications additional text: -|DNV-CG-0339,Aug.2021|-|-
- Conformity marking: CE
- Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
- Conversion time (typ.): 10ms
- Current consumption (5 V system supply): 45mA
- Current consumption, field supply (module with no external load): 19mA
- Degree of pollution: 2
- Degree of protection: IP20
- Depth: 67.8 mm / 2.669 inches
- Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
- Dielectric strength: 510 VAC/775 VDC; per EN 60870-2-1
- Digital inputs quantity: no digital inputs
- Digital outputs quantity: no digital outputs
- Dimensions: H100mm x W24mm x D67.8mm
- Explosion protection - Ex standard: EN/IEC 60079-0, -7, -11
- Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
- Fine-stranded conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
- Fire load: 1.263MJ
- General approvals additional text: TP TC 020/2011|UL 61010-2-201
- Height: 100 mm / 3.937 inches
- Housing Material: Polycarbonate; polyamide 6.6
- Humidity: 95% relative humidity (RH; non-condensing)
- Input resistance (max.): 200
- Intrinsic safety Ex i: yes
- Isolation: 300 VAC system/field
- Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
- Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
- Measurement error (reference temperature): 25°C
- Measurement error, deviation (max.) from the upper-range value: 0.001
- Mounting mode: DIN rail
- Mounting position: horizontal (standing/lying); vertical
- Net Width (mm): 24mm
- Number of analog inputs: 4
- Number of incoming power jumper contacts: 2
- Number of outgoing power jumper contacts: 2
- Pollution degree (5): 2 per IEC 61131-2
- Power consumption Pmax.: 2.7 W (at 4 x 21 mA signal current)
- Power dissipation/losses: 1.5W
- Power loss Pl: 1.5 W (at 4 x 21 mA signal current)
- Protection type: IP20
- Relative humidity (without condensation): 0.95
- Resolution [bit]: 12bits
- Shock resistance: per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 61373
- Signal characteristics: Single-ended
- Signal type: Current
- Signal type (current): 0 | 20 mADC; 4 | 20 mADC; 3.6 | 21 mADC
- Solid conductor: 0.25 | 2.5 mm² / 24 | 14 AWG
- Sub-range name: XTR
- Supply voltage (DC): 5Vdc (supplied by system)|24Vdc fixed suppl. to field sensing devices
- Surrounding air temperature (storage): -40 | +85 °C
- Temperature error (max.) of the upper-range value: 0.01%/K
- Total number of channels (module): 4
- Vibration resistance: per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3
- Weight: 96.5g
- Width: 24 mm / 0.945 inches
- Connection type (electrical): Terminals (Cage-clamp)
