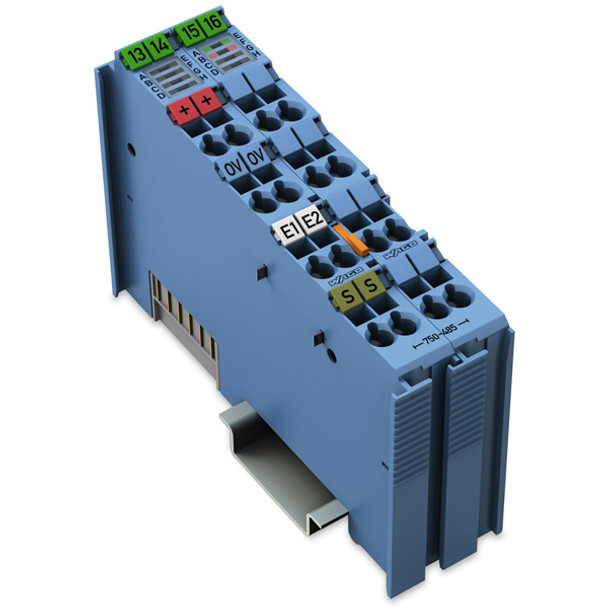

750-485 WAGO 750 Series Intrinsically-Safe Analog Input Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Intrinsically-safe analog input slice module, 4AI; 4-20mA; Ex i, 2I/O [2AI (2 x analog inputs (4-20mA; Single-ended; 12-bits / 2ms conversion; 3-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (24mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750485.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -25°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog input resolution: 12-bit
  • Analog inputs quantity: 2
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|DNV-CG-0339,Aug.2021|-|-|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Conversion time (typ.): 2ms
  • Current consumption (5 V system supply): 31mA
  • Current consumption, field supply (module with no external load): 11mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 67.8 mm / 2.669 inches
  • Depth from upper-edge of DIN-rail: 60.6 mm / 2.386 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W24mm x D67.8mm
  • Explosion protection - Ex standard: EN IEC 60079-0, -7, -11
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 2.043MJ
  • General approvals additional text: Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input resistance (max.): 100
  • Intrinsic safety Ex i: yes
  • Isolation: 300 VAC system/field
  • Marking: ATEX/IECEx: II 3 (1) G Ex ec [ia Ga] IIC T4 Gc; II (1) D [Ex ia Da] IIIC; I (M1) [Ex ia Ma] I
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Measurement error (reference temperature): 25°C
  • Measurement error, deviation (max.) from the upper-range value: 0.002
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 24mm
  • Number of analog inputs: 2
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Pollution degree (5): 2 per IEC 61131-2
  • Power consumption Pmax.: 1.3 W
  • Power dissipation/losses: 0.75W
  • Power loss Pl: 0.75 W
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Resolution [bit]: 12bits
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal characteristics: Single-ended
  • Signal type: Current
  • Signal type (current): 4 | 20 mADC
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)|24Vdc fixed suppl. to field sensing devices
  • Surrounding air temperature (storage): -25 | +85 °C
  • Temperature error (max.) of the upper-range value: 0.01%/K
  • Total number of channels (module): 2
  • Vibration resistance: 4g per IEC 60068-2-6
  • Weight: 97.6g
  • Width: 24 mm / 0.945 inches
  • Connection type (electrical): Terminals (Cage-clamp)
