750-458 WAGO 750 Series Standard Analog Input Slice Module

Image may represent a range of products. Product may vary based on listed specifications.

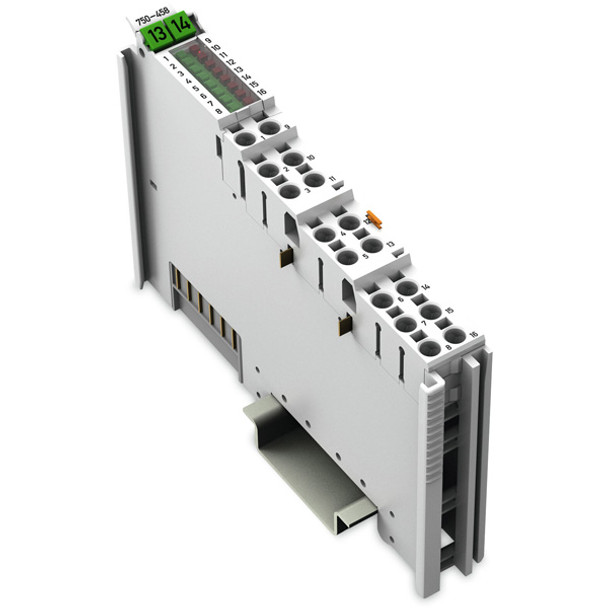

WAGO 750 Series Standard analog input slice module, 8AI; TC; Adjust, 8I/O [8AI (8 x analog inputs (Configurable thermocouple types K; B; C; E; J; N; R; S; T; U / voltage measurement; -30...+30mV; -60...+60mV; -120...+120mV; -240...+240mV / 0.1°C resolution / 100ms conversion; 2-wire))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750458.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: 0°C...+55°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): 0 | +55 °C
  • Analog inputs quantity: 8
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|Rules for class. of Steel Ships|DNV-CG-0339,Aug.2021|-|-|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Conversion time (typ.): 100ms
  • Current consumption (5 V system supply): 100mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 69 mm / 2.717 inches
  • Depth from upper-edge of DIN-rail: 61.8 mm / 2.433 inches
  • Digital inputs quantity: no digital inputs
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W12mm x D69mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.25 | 1.5 mm² / 22 | 16 AWG
  • Fire load: 0.82MJ
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Isolation: 500 V system/field
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Number of analog inputs: 8
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Pollution degree (5): 2 per IEC 61131-2
  • Processing time: 100ms
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Resolution (over entire range): 0.1 °C
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal type: Thermocouple|Low voltages
  • Signal type (configurable): yes
  • Solid conductor: 0.08 | 1.5 mm² / 28 | 16 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
  • Surrounding air temperature (storage): -25 | +85 °C
  • Temperature error (max.) of the upper-range value: 0.05%/K
  • Total number of channels (module): 8
  • Vibration resistance: 4g per IEC 60068-2-6
  • Weight: 63g
  • Width: 12 mm / 0.472 inches
  • Connection type (electrical): Terminals (Cage-clamp)
