750-422 WAGO 750 Series Standard DC Digital Input Slice Module w/ Pulse Extension

Image may represent a range of products. Product may vary based on listed specifications.

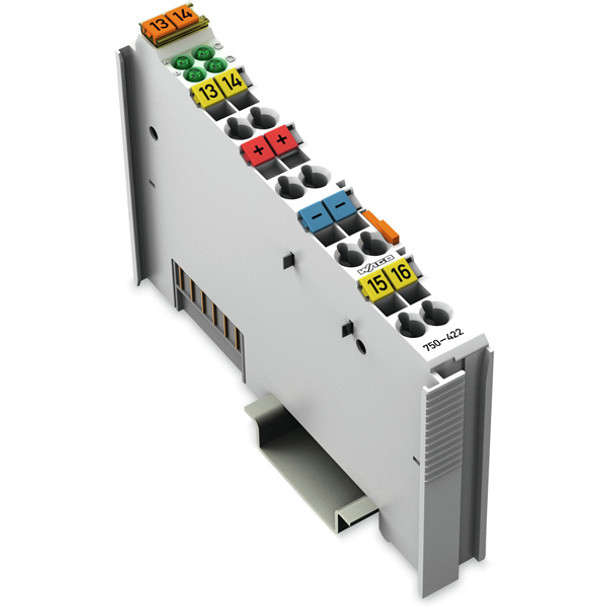

WAGO 750 Series Standard DC digital input slice module with pulse extension, 4DI; 24Vdc; Pulse Extension, 4I/O [4DI (4 x digital inputs (24Vdc transistor; high-side switching; 2-wire / 3-wire; 1ms filter))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for 0°C...+55°C ambient, equivalent to 750422.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: Input Modules
Ambient air temperature for operation: 0°C...+55°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): 0 | +55 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Conformity marking: CE
Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
Current carrying capacity (power jumper contacts): 10A
Current consumption (5 V system supply): 9mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 69.8 mm / 2.748 inches
Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
Digital inputs quantity: 4
Digital inputs type: DC
Digital outputs quantity: no digital outputs
Dimensions: H100mm x W12mm x D69.8mm
Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Fire load: 0.996MJ
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
Height: 100 mm / 3.937 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Input characteristic: high-side switching
Input current per channel for signal (1) typ.: 4mA
Input data width (internal) max.: 4bits
Input filter (digital): 1|1ms
Isolation: 500 V system/field
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 12mm
Number of digital inputs: 4
Number of incoming power jumper contacts: 2
Number of outgoing power jumper contacts: 2
Pluggable connector: Fixed
Pollution degree (5): 2 per IEC 61131-2
Protection type: IP20
Relative humidity (without condensation): 0.95
Shock resistance: 15g per IEC 60068-2-27
Signal frequency (max.): 80Hz
Signal type: Voltage
Signal type (voltage): 24 VDC
Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
Supply voltage (DC): 5Vdc (supplied by system)|20.4-28.8Vdc adjustable suppl. to field sensing devices
Surrounding air temperature (storage): -25 | +85 °C
Total number of channels (module): 4
Vibration resistance: per IEC 60068-2-6
Voltage range for signal (1): 15 | 30 VDC
Weight: 46.6g
Width: 12 mm / 0.472 inches
Connection type (electrical): Terminals (Cage-clamp)
