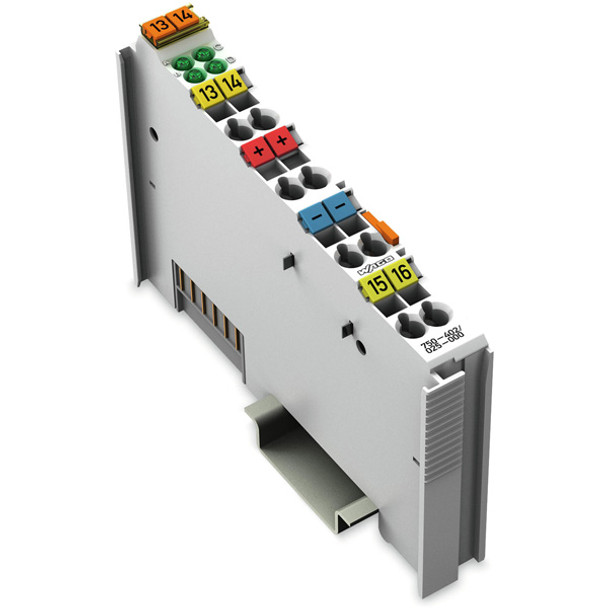

750-402/025-000 WAGO 750 Series Standard DC Digital Input Slice Module w/ Extended Temperature Range

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Standard DC digital input slice module with extended temperature range, 4DI; 24Vdc; 3ms; T, 4I/O [4DI (4 x digital inputs (24Vdc transistor; high-side switching; 2-wire / 3-wire; 3ms filter))], supply voltage 5Vdc (supplied by system), with Push-in spring cage-clamp connections, DIN-35 rail mounting (12mm width), IP20, rated for -20°C...+60°C ambient, equivalent to 750402025000.

  • Manufacturer: WAGO
  • Product Family: 750 Series
  • Product Category: Connectivity
  • Product Type: Input Modules
  • Ambient air temperature for operation: -20°C...+60°C
  • Ambient air temperature for storage: -40°C...+85°C
  • Ambient temperature (operation): -20 | +60 °C
  • Analog inputs quantity: no analog inputs
  • Analog outputs quantity: no analog outputs
  • Approvals for marine applications additional text: -|-|DNV-CG-0339,Aug.2021|-|-
  • Conformity marking: CE
  • Connection type (electrical) (filter / rank = 0005030): Terminals (Cage-clamp)
  • Current carrying capacity (power jumper contacts): 10A
  • Current consumption (5 V system supply): 7.5mA
  • Degree of pollution: 2
  • Degree of protection: IP20
  • Depth: 69.8 mm / 2.748 inches
  • Depth from upper-edge of DIN-rail: 62.6 mm / 2.465 inches
  • Digital inputs quantity: 4
  • Digital inputs type: DC
  • Digital outputs quantity: no digital outputs
  • Dimensions: H100mm x W12mm x D69.8mm
  • Exposure to pollutants: Per IEC 60068-2-42 and IEC 60068-2-43
  • Fine-stranded conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Fire load: 1.404MJ
  • General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 508
  • Height: 100 mm / 3.937 inches
  • Housing Material: Polycarbonate; polyamide 6.6
  • Humidity: 95% relative humidity (RH; non-condensing)
  • Input characteristic: high-side switching
  • Input current per channel for signal (1) typ.: 4.5mA
  • Input data width (internal) max.: 4bits
  • Input filter (digital): 3|3ms
  • Isolation: 500 V system/field
  • Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
  • Mounting mode: DIN rail
  • Mounting position: horizontal (standing/lying); vertical
  • Net Width (mm): 12mm
  • Number of digital inputs: 4
  • Number of incoming power jumper contacts: 2
  • Number of outgoing power jumper contacts: 2
  • Pluggable connector: Fixed
  • Pollution degree (5): 2 per IEC 61131-2
  • Protection type: IP20
  • Relative humidity (without condensation): 0.95
  • Shock resistance: 15g per IEC 60068-2-27
  • Signal type: Voltage
  • Signal type (voltage): 24 VDC
  • Solid conductor: 0.08 | 2.5 mm² / 28 | 14 AWG
  • Supply voltage (DC): 5Vdc (supplied by system)|18-32.5Vdc adjustable suppl. to field sensing devices
  • Surrounding air temperature (storage): -40 | +85 °C
  • Total number of channels (module): 4
  • Vibration resistance: 4g per IEC 60068-2-6
  • Voltage range for signal (1): 15 | 30 VDC
  • Weight: 47.3g
  • Width: 12 mm / 0.472 inches
  • Connection type (electrical): Terminals (Cage-clamp)

750-402/025-000
