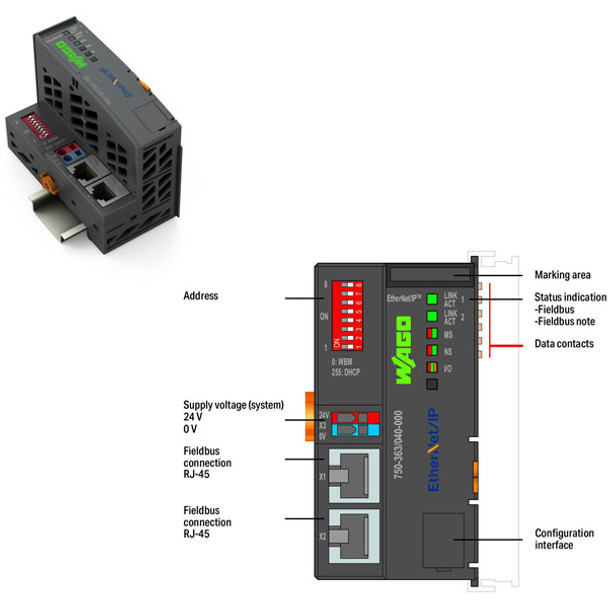

750-363/040-000 WAGO 750 Series Fieldbus Coupler / Head (Remote I/O (RIO) Controller Unit) w/ Extended Temperature Range - Gen.4

Image may represent a range of products. Product may vary based on listed specifications.

WAGO 750 Series Fieldbus coupler / head (remote I/O (RIO) controller unit) with extended temperature range, Gen.4, (750 XTR), FC EtherNet/IP; G4; XTR, 64 x connections per node connection capability, with Ethernet/IP communication capability, supply voltage 24Vdc via wiring (system), with 2 x RJ45 connectors (fieldbus) + Push-in spring cage-clamp (pwr. suppl. connections) + 4-pin male connector (device configuration), DIN-35 rail mounting (49.5mm width), IP20, rated for -40°C...+70°C ambient, replaces obsolete component(s) 750-352/040-000, equivalent to 750363040000.

Manufacturer: WAGO
LINKS_Browse All WAGO Products: /manufacturers/wago
Product Family: 750 Series
Product Category: Connectivity
Product Type: I/O Modules
Ambient air temperature for operation: -40°C...+70°C
Ambient air temperature for storage: -40°C...+85°C
Ambient temperature (operation): -40 | +70 °C
Analog inputs quantity: no analog inputs
Analog outputs quantity: no analog outputs
Approvals for marine applications additional text: DNV-CG-0339,Aug.2021
Communication protocol: Ethernet/IP
Conformity marking: CE
Connection capacity: 64 x connections per node
Connection type (electrical) (filter / rank = 0005030): RJ-45 connector|Terminals (Cage-clamp)
Current consumption (5 V system supply): 350mA
Degree of pollution: 2
Degree of protection: IP20
Depth: 71.9 mm / 2.831 inches
Depth from upper-edge of DIN-rail: 64.7 mm / 2.547 inches
Digital inputs quantity: no digital inputs
Digital outputs quantity: no digital outputs
Dimensions: H96.8mm x W49.5mm x D71.9mm
ETHERNET protocols: HTTP(S)|BootP|DHCP|DNS|SNTP|FTP(S)|SNMP
Exposure to pollutants: per IEC 60068-2-42 and IEC 60068-2-43
Fine-stranded conductor: 0.25 | 1.5 mm² / 24 | 16 AWG
Fire load: 0.176MJ
General approvals additional text: TP TC 020/2011|Article 58-2, Clause 3|UL 61010-2-201
Height: 96.8 mm / 3.811 inches
Housing Material: Polycarbonate; polyamide 6.6
Humidity: 95% relative humidity (RH; non-condensing)
Input and output process image (fieldbus) max.: 1020 words/1020 words
Input current (typ.) at nominal load (24 V): 280mA
Material: Polycarbonate (PC) / Polyamide (PA) 6.6 housing
Mounting mode: DIN rail
Mounting position: horizontal (standing/lying); vertical
Net Width (mm): 49.5mm
Number of modules per node (max.): 64
Pollution degree (5): 2 per IEC 61131-2
Power supply efficiency (typ.) at nominal load (24 V): 0.9
Protection type: IP20
Relative humidity (without condensation): 0.95
Replaces: 750-352/040-000
Shock resistance: per IEC 60068-2-27 (15g/11 ms/half-sine/1,000 shocks; 25g/6 ms/1,000 shocks), EN 50155, EN 61373
Solid conductor: 0.25 | 1.5 mm² / 24 | 16 AWG
Speed: 10Mbit/s / 100Mbit/s
Sub-range name: XTR
Supply voltage (DC): 24Vdc via wiring (system)
Supply voltage (DC): 24Vdc
Surrounding air temperature (storage): -40 | +85 °C
Total current (system supply): 700mA
Vibration resistance: per IEC 60068-2-6 (acceleration: 5g), EN 60870-2-2, IEC 60721-3-1, -3, EN 50155; EN 61373
Weight: 103.9g
Width: 49.5 mm / 1.949 inches
Connection type (electrical): RJ-45 connector|Terminals (Cage-clamp)
