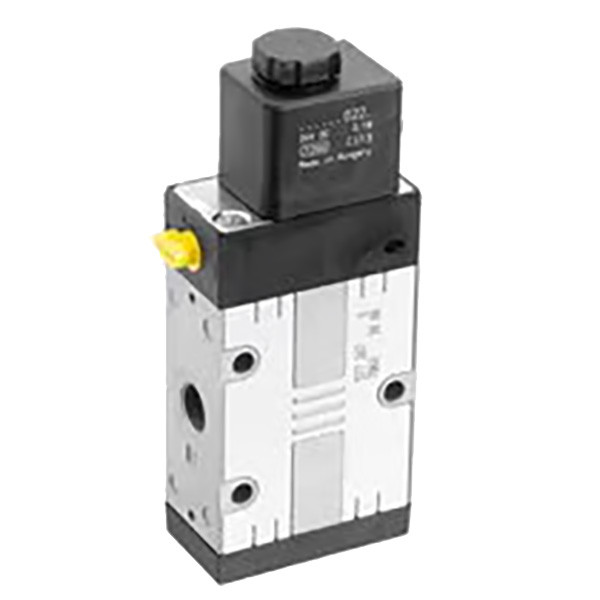

5772075270 Aventics Series CD07 3/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series CD07 3/2-Directional Valve, Single Solenoid, Electrical Activation, Spool Valve, Positive Overlapping, 3/2, with Spring Return, Soft Seal, with Detent, Internal Thread, G 1/4 Compressed Air Connection, 1400 l/min Nominal Flow, 3 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form A, IP65, Internal Pilot, Protected Against Polarity Reversal, 110 VAC Operational Voltage, -10% / +10% Voltage Tolerance, 30 mm Coil/Pilot Valve Width, Compatibility Index 52, 100% Duty Cycle, 25 ms Switch-on Time, 45 ms Switch-off Time.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series CD07
Product Type: Directional Valves
