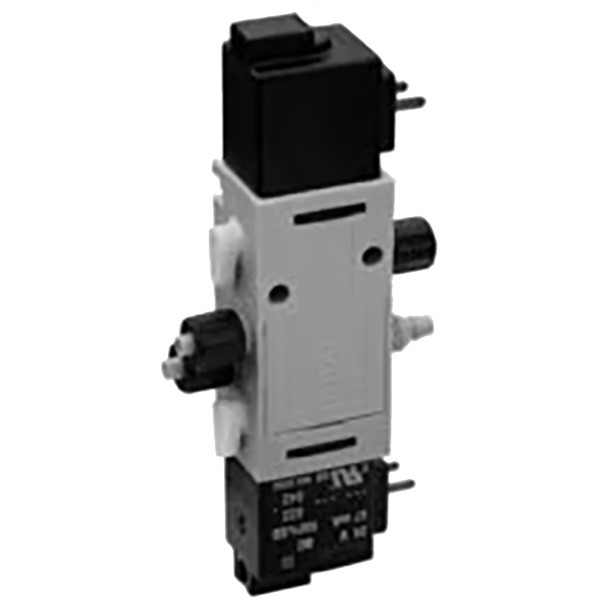

5728410620 Aventics Series 840 4/2-Directional Valve

Image may represent a range of products. Product may vary based on listed specifications.

Aventics Series 840 4/2-Directional Valve, Electrical Activation, Diaphragm Poppet Valve, 4/2, Double Solenoid, Soft Seal, with Detent, Threaded Connection, 6 Diam. Compressed Air Connection Output, 200 l/min Nominal Flow, 1.8 to 10 bar Working Pressure, Plug Connection, EN 175301-803, Form C, IP65, Internal Pilot, Protected Against Polarity Reversal, 24 VDC Operational Voltage, -10% / +10% Voltage Tolerance, 20 mm Coil Width, 22.5 mm Pilot Valve Width, Red LED, 1.6W Power Consumption, 100% Duty Cycle, 12 ms Switch-on Time, 12 ms Switch-off Time.

Manufacturer: Aventics
LINKS_Browse All Aventics Products: /manufacturers/aventics
Product Category: Valves
Product Family: Series 840
Product Type: Directional Valves
